    Ni MH Batteries for Cordless Power Too With lHigh Discharge Current

    Ask Lasest Price
    Brand Name : TAC
    Model Number : NIMH Power Tool Battery
    Certification : MSDS REACH
    Price : usd5-10
    Payment Terms : T/T, LC, Paypal etc.
    Supply Ability : 500000pcs per week
    Delivery Time : 10-25 days
    • Product Details
    • Company Profile

    Ni MH Batteries for Cordless Power Too With lHigh Discharge Current

    NiMH Batteries for Cordless Power Too With lHigh Discharge Current


    Spcification for NiMH Batteries for Cordless Power Too With lHigh Discharge Current


    DesriptionSpecification
    Model6PH-H-AA2300H-W-X22
    SizeAA
    DimensionsLength (mm)Max44
    Width(mm)Max 30
    Height(mm)Max 53.5
    Weight(g)Approx. 195g
    Nominal Voltage(V)7.2
    Nominal capacity(mAh)2300
    Internal Impedance(mΩ)≤400
    Discharge Cut-off Voltage6.0V
    Ambient temperatureChargestandard0℃ to 40℃
    fast10℃ to 40℃
    Discharge-10℃ to 50℃
    Storage<1 year-10℃ to 30℃
    <3 months-10℃ to 40℃
    The relative humidity should keep with in 65±20%

    Cautions in use

    To ensure proper use of the battery please read the manual carefully before using it.

    Handling

    1. Do not expose to, dispose of the battery in fire.
    2. Do not put the battery in a charger or equipment with wrong terminals connected.
    3. Avoid shorting the battery.
    4. Avoid excessive physical shock or vibration.
    5. Do not disassemble or deform the battery.
    6. Do not immerse in water.
    7. Do not use the battery mixed with other different make, type, or model batteries.
    8. Keep out of the reach of children.

    Storage

    Store the battery in a cool, dry and well-ventilated area.

    Disposal

    1. Regulations vary for different countries.
    2. Dispose of in accordance with local regulations.

    Drawing for the Nimh Battery Pack

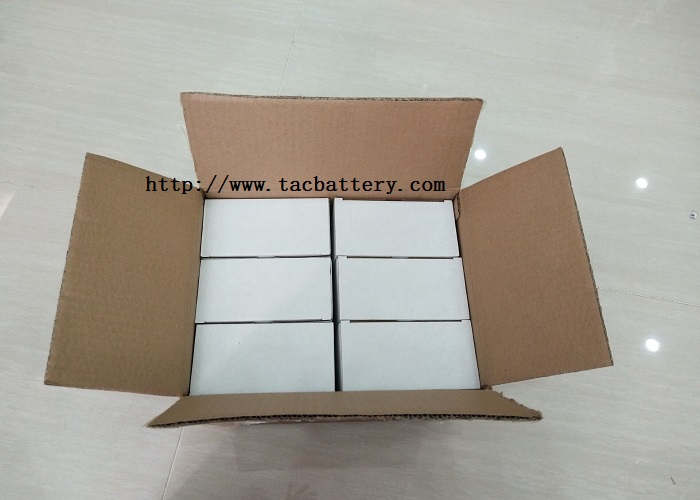

    The Package For Battery Pack


    5 set in one inner box 8 box in one export outer carton



    Other model for SC size , the capacity from 1500mah to 3500mah


    TypeModelSize

    Nominal

    capacity(mAh)

    Dimensions

    The max

    discharge

    current(A)

    Raoid ChargeWeight
    HeightDiameterCurrentTime
    SC1500SC1500332322.515001.235
    SC1600SC160033232416001.236
    SC1800SC180033232718001.238
    SC2000SC200033233020001.240
    SC2100SC2100332331.521001.241
    SC1300SC1300432319.513001.240
    SC1600SC160043232416001.244
    SC1800SC180043232718001.246
    SC2000SC200043233020001.248
    SC2200SC220043233322001.250
    SC3200SC320043234832001.260
    SC3300SC3300432349.533001.261
    SC3600SC360043235436001.265

    Photos for similar NIMh battery Pack
