Lithium Ion Battery Pack 18650 14.8V 20Ah for Electronic Instruments

    Buy cheap Lithium Ion Battery Pack 18650 14.8V 20Ah for Electronic Instruments from wholesalers

    Buy cheap Lithium Ion Battery Pack 18650 14.8V 20Ah for Electronic Instruments from wholesalers
    • Buy cheap Lithium Ion Battery Pack 18650 14.8V 20Ah for Electronic Instruments from wholesalers
    • Buy cheap Lithium Ion Battery Pack 18650 14.8V 20Ah for Electronic Instruments from wholesalers
    • Buy cheap Lithium Ion Battery Pack 18650 14.8V 20Ah for Electronic Instruments from wholesalers

    Lithium Ion Battery Pack 18650 14.8V 20Ah for Electronic Instruments

    Ask Lasest Price
    Brand Name : TAC OEM & ODM
    Model Number : 18650 12.8V
    Certification : MSDS REACH ROHS
    Price : USD 80-100
    Payment Terms : 100% prepaid before shipping out
    Supply Ability : 100000PCS EACH WEEK
    Delivery Time : 7-10 days after order confirm for stock model
    • Product Details
    • Company Profile

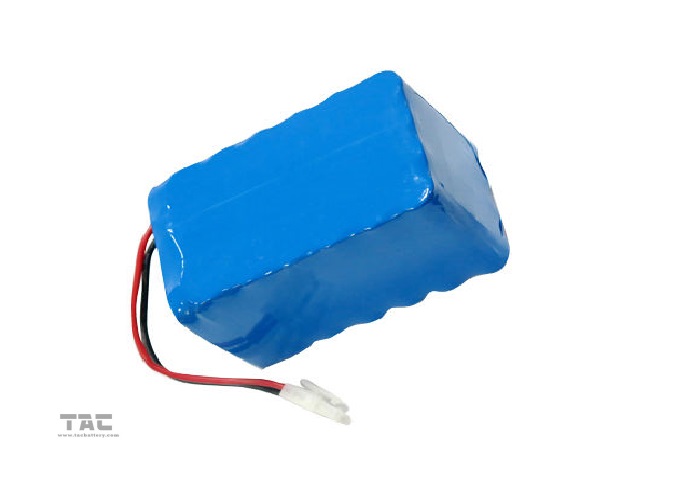

    Lithium Ion Battery Pack 18650 14.8V 20Ah for Electronic Instruments

    Lithium Ion Battery Pack 18650 14.8V 20Ah for Electronic Instruments

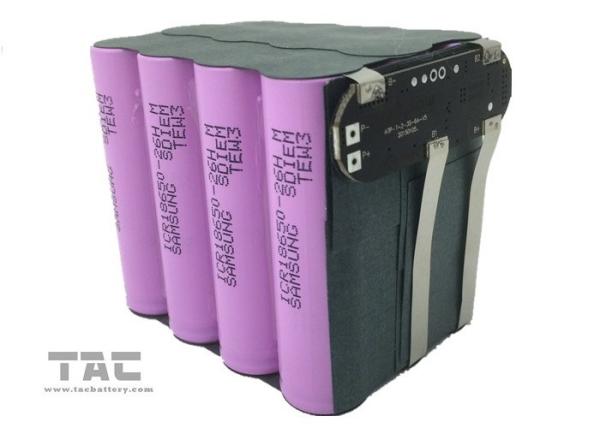

    Production photos For Lithium Ion Battery Pack 18650 14.8V 20Ah for Electronic Instruments

    Feature For Lithium Ion Battery Pack 18650 14.8V 20Ah for Electronic Instruments

    1. All kinds of size, voltage and capacity assembled by customer's require
    2. high capacity, low internal resistance, voltage stability. long circle life
    3. No memory effect, can charge and discharge at any time.
    4. High safety: built-in protection board, had overcharge protection, to ensure the safety of batteries used.
    5. Green environmental protection: ROHS, SGS, CE, UL and other certification, suitable for the European and American market demand.

    Charge and Discharge Performance

    1. Standard charging current: 0.2 C

    2. Standard discharge current: 0.2 C

    3. Fast charging current: 1.0 C

    4. Quick discharge current: 1.0 C

    5. Charging temperature: 0 ~ 45 °C

    6. Discharge temperature: - 20 ~ 45 °C

    7. Storage temperature: - 20 ~ 45 °C


    Application for Lithium Ion Battery Pack 18650 14.8V 20Ah for Electronic Instruments

    1. Portable electronic devices.
    2. Bluetooth headset.
    3. Digital camera.
    4. MP4 player.
    5. Cellular phone
    6. Digital phone,mobile phone.
    7. PDA.DMB.DVD,portable DVD.
    8. MID.Digital camcorder,Digital camera
    9. Electronic cigarette
    10. computer.
    11. Electronic pen.
    12. E-book.
    13. Flashlight.
    14. GPS

    Specification

    No.

    Item

    Rated Performance

    Remark

    1

    Rated Capacity

    Typical

    20Ah

    Standard discharge(0.2CC5A) after Standard charge

    Minimum

    19.5Ah

    2

    Nominal Voltage

    14.8V

    Mean Operation Voltage During Standard Discharge After Standard Charge

    3

    Voltage at end of
    Discharge

    11V

    Discharge Cut-off Voltage

    4

    Charging Voltage

    16.8±0.03V


    5

    AC (1KHz) Impedance New Cell Max.(mW)

    ≤60mΩ


    6

    Standard charge

    Constant Current 0.5C5A
    Constant Voltage 16.8V
    0.01 C5Acut-off

    Charge time : Approx 4.0h

    7

    Standard discharge

    Constant current 0.2 C5A
    end voltage 11V


    8

    Fast charge

    Constant Current 1C5A
    Constant Voltage 16.8V
    0.01 C5Acut-off

    Charge time : Approx 2.5h

    9

    Fast discharge

    Constant current 1 C5A
    end voltage 11V


    10

    Maximum Continuous Charge Current

    1 C5A


    11

    Maximum Continuous Discharge Current

    1.5C5A


    12

    Operation Temperature Range

    Charge: 0~45℃

    60±25%R.H.
    Bare Cell

    Discharge: -20~60℃

    13

    Storage Temperature
    Range

    Less than 1 year: -20~25℃

    60±25%R.H.
    at the shipment state

    less than 3 months: -20~40℃

    14

    Weight

    Approx:2000g

    BatteryPack


    Packing Manner


    1 set in one foam bag
    2-5set in one inner box
    4 box in one strong export carton



    Delivery Date:

    15-20 days for normal order
    25-35 days for customize order

    Work Flow for Lithium Battery Pack
