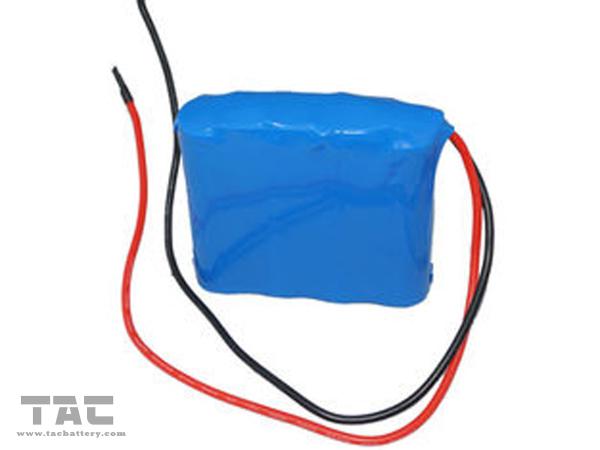

18500 12V LiFePO4 Battery Pack 1AH With BMS for Street Light and Lamp

Ask Lasest Price
Brand Name :	TAC OEM ODM
Model Number :	IFR 18500 1000mAh battery pack
Certification :	MSDS REACH ROHS
Price :	usd 3-4
Payment Terms :	TT/ LC/ PAYPAL
Supply Ability :	100000PCS EACH WEEK
Delivery Time :	7-25 days after order confirm

Add to Cart

Product Details
Company Profile

18500 12V LiFePO4 Battery Pack 1AH With BMS for Street Light and Lamp

Base Data for 18500 12V LiFePO4 Battery Pack 1AH With BMS for Street Light and Lamp

The battery pack can replace VRLA/SLA (Lead Acid) battery.

Item	General Parameter	Remark
Rated Capacity	1.0Ah	Standard discharge(0.5C)after standard charge(0.5C)
Minimal Rated Capacity	0.95Ah	Standard discharge(0.5C)after standard charge(0.5C)
Nominal Voltage	12.8V
Cycle Life	Higher than 60% of the Initial Capacity of the Cells	Charge: CC@0.5C to 14.6V, then CV till current to 0.05C Rest: 30min. Discharge: 0.5C to 10.0V Temperature:20±5℃ Carry out 800cycles
Discharge cut-off voltage	none	No over-discharge protection,10.0V recommended
Charging cut-off voltage	none	No over-charge protection,14.6V recommended
Cell and assembly method	IFR18500P-1.0AH	4S1P
Packing material	PVC

Capacity Test Method And Standard

Continuous the table 1

No.	Item	General Parameter	Remark
9	Standard charge	0.5C constant current(CC) charge to 14.6V,then constant voltage (CC)14.6V charge till charge current decline to ≤0.05C	Charge time : Approx 3.5h
10	Standard discharge	Constant current 0.5C Cut-off voltage 10.0V
11	Maximum Charge Current	1.0A
12	Maximum Discharge Current	1.0A	The surface of the battery pack do not exceed 65℃
13	Operation Temperature Range	Charge: 0~45℃	60±25%R.H.
13	Operation Temperature Range	Discharge: -10~50℃	60±25%R.H.
14	Storage Temperature Range	Less than 1 year : 0~25℃	60±25%R.H. at the shipment state
14	Storage Temperature Range	Less than 3 months:-5~35℃	60±25%R.H. at the shipment state
15	Weight	Approx: 40.0g±10.0g
16	Pack Dimension	High:79mm	max
		Width: 20mm
		Length: 70mm

Features for LiFePO4 Battery Pack IFR26650 4S1P 12.8V 2300mAh For Solar Light

1. High energy density than normal lithium-ion

2. safest lithium raw material

3. Wide range of operating temperature from 0 degree to 45 degree

4. Stable operating voltage and current

5. Long operating time and deep circle 2000 times

6. Low self-discharge rate (less than 2% per year at 20°C).

Main Applications :

Power bank

Laptop

Flashlight

E-V

Electrinic tool

E- shaver

Lamp

Solar Led Lighting

Package Pictures

each battery pack protected by bubble pack,and then one pack for each box
20 box for one carton
Display box and OEM package is workable

Accemble Structure:

Other Model For Similar Type

MODEL	CAPACITY mAh
IFR10120	35
IFR10440	200
IFR14430	300
IFR14430	400
IFR14430	500
IFR14430 FLAT	450
IFR14505	250
IFR14505	300
IFR14505	400
IFR14500 FLAT	600
IFR14505	600
IFR15270	200
IFR17335	450
IFR18500	600
IFR18500	800
IFR18500	1000
IFR18650	1000
IFR18650 HIGH POWER	1100
IFR18650	1200
IFR18650	1500
IFR26650	3000
IFR26650	3300
