LFP battery 18650 3.2V cell 1500mah For Electric Cars Same With
Samsung
Quick Detail:
1. Safer design the battery with ptc inside same with Samsung and
2. Long circle life over 2000time Deep Of Discharge 100%
3. The highest capacity for same size
4. wide range for various electrical device
Specification for LFP battery 18650 3.2V cell 1500mah For Electric
Cars Same With Samsung
No. | Items | Specifications |
1 | Charge cut-off voltage | 3.65V |
2 | Nominal voltage | 3.2V |
3 | Minimal capacity | 1500mAh @ 1C Discharge |
4 | Nominal capacity | 1450mAh @ 1C Discharge |
5 | Charge current | 0.2C |
6 | Standard charging method | 0.5C CC (constant current) charge to 3.65V, then CV (constant
voltage 3.65V) charge till charge current decline to £ 0.05C |
7 | Charging time | Standard charge: 2.0 hours Ref |
8 | Max. charge current | 0.2C |
9 | Max. continue discharge current | 2 C (Cell skin temperature cannot exceed 80°C) |
10 | Discharge cut-off voltage | 2.0V |
11 | Operating temperature | Charging: -10°C ~ 45°C Discharging: -20°C ~ 60°C (Cell skin temperature cannot exceed 80°C) |
12 | Storage temperature/humidity | Temperature -10°C ~ +35°C Humidity 65%±20%RH (Recommended to store 23 ± 5°C for long term storage) |
13 | Cell Weight | 38.0g±1.0g |
14 | Cell Dimension | Length: 65.0±0.3 mm Width: 18.2±0.2 mm |
Packing Method
Packing follow un38.3 certification strictly
promise the safe during the transportation process, so we sperate
the bulk cell one by one with special pallet

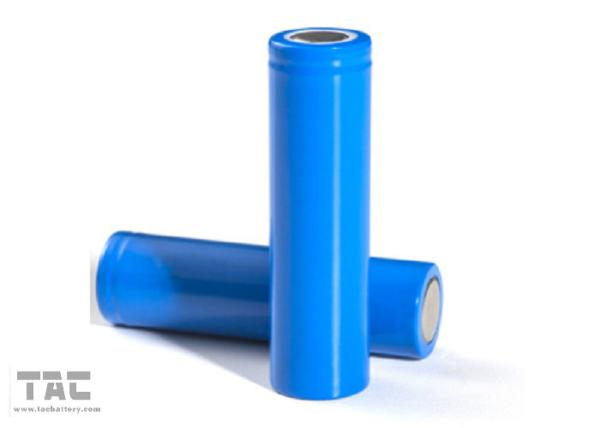

Pictures:
LFP battery/18650 3.2V cell 1500mah For Electric Cars Same With
Samsung
Application:
High Power 18650 3.2V LiFePO4 Battery 1100mAh for Electric
Tool,Boat and Car and so on.
Certification
UN38.3 UL for most capacity of ICR18650 and ICR26650
Delivery Time
5 days for the bulk with normal blue pvc
25 days for OEM order
Payment
100% pay before the cargo ship from factory for normal bulk order
30% advance , 70%before the cargo ship from factory for OEM bulk
order or battery pack order
PTC Describe
Samsung and Battery have high safe performance than normal company
because they add PTC inside the each cell and protect the battery
,avoid the battery leak and explode when batteries were over
temperature short circle over discharge ,so if the customer
assembled the battery pack , the most manufacturer will add the PCB
(protect Board ) , so these type is double protect .
