12.8V 170Ah LiFePO4 Battery Pack For Solar System 12V VRLA SLA Replacement

Product Categories

Guang Zhou Sunland New Energy Technology Co., Ltd.

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Add to Cart

Features for 12.8V 170Ah LiFePO4 Battery Pack for Solar System for 12V VRLA SLA Replacements

LiFePO4 batteries that can be used as 12V VRLA/SLA replacements. The physical size of the battery would be the same as the equivalent VRLA/SLA (Lead Acid) battery
Deep circle life 2000times base on DOD 80%
Good service for after sale
This design is portable power systems ,These systems can be used in construction and trailers

No.	Item	General Parameter		Remark
1	Rated Capacity	170.0Ah		Standard discharge(0.2 C5)after standard charge(0.2 C5)
2	Minimal Rated Capacity	165.0Ah
3	Nominal Voltage	12.8V
4	Cycle Life	Higher than 60% of the Initial Capacity of the Cells		◆Charge: CC@0.2C to 14.6V, then CV till current to 0.05C ◆Rest: 30min. ◆Discharge: 0.2C to 10.0V ◆Temperature:20±5℃ ◆Carry out 2000cycles 100%DOD ◆Carry out 3000cycles 80%DOD ◆Carry out 3500cycles 60%DOD
5	Discharge cut-off voltage	10.0V		10.0V( recommended)
6	Charging cut-off voltage	15.6V		14.6V (recommended)
7	Cell and assembly method	IFR26650EC-3.3AH		4S52P
8	Housing material	ABS+PC housing
9	Standard charge		0.2C constant current(CC) charge to 14.6V,then constant voltage (CV)14.6V charge till charge current decline to ≤0.05C	Charge time : Approx 7h
10	Standard discharge		Constant current 0.2C Cut-off voltage 10.0V
11	Maximum Charge Current		80A
12	Continuous Discharge Current		40A
13	Operation Temperature Range		Charge: 5~45℃	60±25%R.H.
			Discharge: -10~60℃
14	Storage Temperature Range		Less than 1 year : 0~25℃	60±25%R.H. at the shipment state
			Less than 3 months:-5~35℃
15	Weight		Approx: 19.1Kg
16	Max.Dimension		Height:270mm	MAX SIZE
			Width: 156mm
			Length: 348mm

1. Sort the new batteries within one week after shipment from our factory

2. The batteries shall not be cycled more than five times before the test.

3. Test should be with Temperature of 20±5℃ and relative humidity of 45~85%.

4. The test result show capacity should be over 170ah, the mini capacity should be 165ah

The battery pack surround thickness foam and put into the hard paper carton one by one

put into the carton into wood pallet to keep the safety

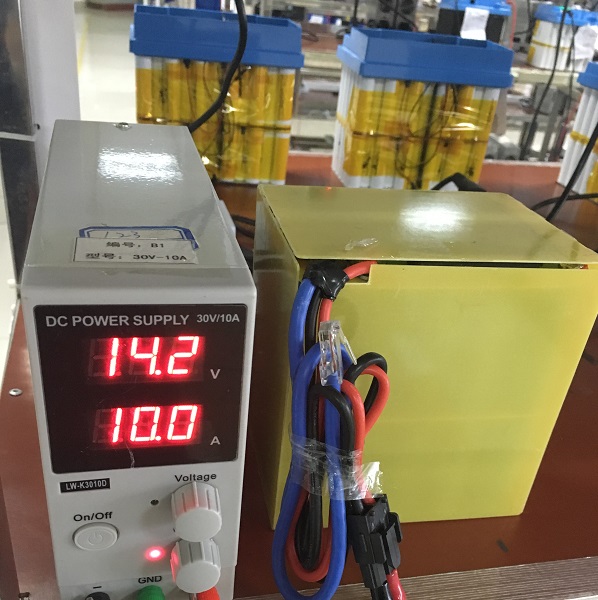

Picture For Battery Pack

Similar Model

25days for norml standard module after customer confirm the PI

35days for OEM order after customer confirm the PI
