12.8V 170Ah LiFePO4 Battery Pack for Solar System as 12V VRLA/SLA
Replacements
Features for 12.8V 170Ah LiFePO4 Battery Pack for Solar System as
12V VRLA/SLA Replacements
- LiFePO4 batteries that can be used as 12V VRLA/SLA replacements.
The physical size of the battery would be the same as the
equivalent VRLA/SLA (Lead Acid) battery
- Deep circle life 2000times base on DOD 80%
- Good service for after sale
- Sales promotion in Oct.2018, the cheapest price less than usd 900
Specification Parameter
No.
| Item
| General Parameter
| Remark
|
| 1 | Rated Capacity
| 170.0Ah | Standard discharge(0.2 C5)after standard charge(0.2 C5)
|
| 2 | Minimal Rated Capacity
| 161.5Ah |
| 3 | Nominal Voltage
| 12.8V | |
| 4 | Cycle Life
| Higher than 60% of the Initial Capacity of the Cells | ◆Charge: CC@0.2C to 14.6V, then CV till current to 0.05C ◆Rest: 30min. ◆Discharge: 0.2C to 10.0V ◆Temperature:20±5℃ ◆Carry out 2000cycles 100%DOD ◆Carry out 3000cycles 80%DOD ◆Carry out 3500cycles 60%DOD
|
| 5 | Discharge cut-off voltage
| 10.0V | 10.0V( recommended)
|
| 6 | Charging cut-off voltage
| 15.6V | 14.6V (recommended)
|
| 7 | Cell and assembly method
| IFR26650EC-3.3AH | 4S52P |
| 8 | Housing material
| ABS+PC housing
| |
| 9 | Standard charge
| 0.2C constant current(CC) charge to 14.6V,then constant voltage
(CV)14.6V charge till charge current decline to ≤0.05C
| Charge time : Approx 7h
|
| 10 | Standard discharge
| Constant current 0.2C Cut-off voltage 10.0V
| |
| 11 | Maximum Charge Current
| 80A | |
| 12 | Continuous Discharge Current
| 40A | |
| 13 | Operation Temperature Range
| Charge: 5~45℃ | 60±25%R.H.
|
| Discharge: -10~60℃ |
| 14 | Storage Temperature Range
| Less than 1 year : 0~25℃
| 60±25%R.H. at the shipment state
|
Less than 3 months:-5~35℃
|
| 15 | Weight
| Approx: 19.1Kg | |
| 16 | Max.Dimension
| Height:270mm | MAX SIZE
|
| Width: 156mm |
| Length: 348mm |
Apply to Below
- Energy Storage: UPS , backup ,power station.big capacity power bank
- EV : Golf trolleys , Electric scooters . E-car Van , tractor
- Solar System,Wind Energy Storage,Solar/Storage Home System, Solar
Street Light.
- Telecommunications Base Stations.
- UPS(Uninterrupted Power Supply).
- General Energy Storage (Such as: Back-up Power, Miner’s lamp,
portable power supply, digital products et
Charge and Discharge Test Method
1. Sort the new batteries within one week after shipment from our
factory
2. The batteries shall not be cycled more than five times before
the test.
3. Test should be with Temperature of 20±5℃ and relative humidity
of 45~85%.
4. The test result show capacity should be over 170ah, the mini
capacity should be 165ah
Packing for 12.8V 170Ah LiFePO4 Battery Pack for Solar System as
12V VRLA/SLA Replacements
The battery pack fit up with specially extra form shelf to keep
safety
and then put into standard export carton

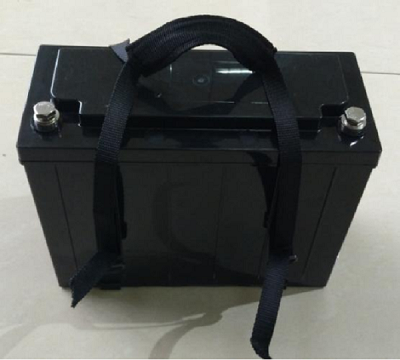

Picture For 12.8V 170Ah LiFePO4 Battery Pack for Solar System as
12V VRLA/SLA Replacements
Delivery Date
25days for norml standard module after customer confirm the PI
35days for OEM order after customer confirm the PI
QC Control Process

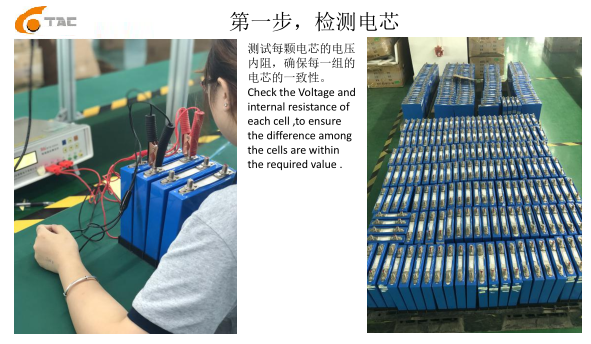

Check the voltage and internal resistance of each cell ,to ensure
the difference among the cells are within the required value
Checking the BMS works normally and to monitor the battery pack
though install the montoring software at the computer
Period of Warranty
The period of warranty is one year from the date of shipment. TAC
guarantees to give a replacement in case of cells with defects
proven due to manufacturing process instead of the customer abuse
and misuse.
Storage of the Batteries
The batteries should be stored at room temperature, charged to
about 30% to 50% of capacity.
We recommend that batteries be charged about once per half a year
to prevent over discharge.
