3.2V LiFePO4 Rechargeable Li Ion Battery Cell For Bluetooth Smart Card Reader

Ask Lasest Price
Brand Name :	TAC OEM ODM
Model Number :	PIFC0342 IFR10440 240MAH
Certification :	MSDS REACH ROHS
Price :	usd 1-2
Payment Terms :	TT, LC, Paypal etc
Supply Ability :	50000 pack for one week
Delivery Time :	7 days for single cell 15-20 days for battery pack

Add to Cart

Product Details
Company Profile

3.2V LiFePO4 Rechargeable Li Ion Battery Cell For Bluetooth Smart Card Reader

3.2V LiFePO4rechargeable li ion battery cell for Bluetooth Smart Card Reader

Features:

1. the single cell IFR10440/AA 240mAh ,the highest capacity for same size
2. There are IFR10400/AAA 200mAh/250mA for your section
3. The application for Digital Products/power tool , blue-tooth smart cards and more
4. Excellent abuse tolerance and environmentally friendly
5. Deep circle ,2000times circle life base on DOD 100%

Application:

Solar street light Solar Lawn and Led lighting

Small Robot and smart device

Tracking device , GPS equipment

intelligent vacuum cleaner

portable speaker products

Medical instrument breathing machine

desktop POS machines

portable equipment

Electrical bike , tour bus e-boat

Battery Specification List for 3.2V LiFePO4rechargeable li ion battery cell for Bluetooth Smart Card Reader

No.	Items	Specifications		Remark
1	Nominal Capacity	240mAh		0.2C Standard discharge
2	Minimum Capacity	220mAh		0.2C Standard discharge
3	Nominal Voltage	3.2V		Mean Operation Voltage
4	Delivery voltage	3.28~3.32V		Within 10 days from Factory
5	Charge Voltage	3.65V±0.03V		By standard charge method
6	Standard charging method	0.2C constant current,3.65V constant voltage charge to 3.65V,continue charging till current decline to ≤0.01C
7	Charge current	0.2C	480mA	Standard charge, charge time about 7h(Ref)
7	Charge current	1.0C	240mA	Rapid Charge, charge time about: ::1.5h(Ref)
8	Standard discharging method	0.2C constant current discharge to 2.5V,
9	Cell Internal Impedance	≤80mΩ		Internal resistance measured at AC 1KH_Z after 50% charge

10	Maximum charge current	1C	240mA	For continuous charging mod
11	Maximum discharge current	3C	720mA	For continuous discharge mod(Discharge capacity for more than 80% of the nominal capacity)
12	Operation Temperature and relative humidity Range	Charge	0~45℃ 60±25%R.H.	Charge at a very low temperature such as blew 0℃,will be get a lower capacity and reduce cycle life of the battery
12	Operation Temperature and relative humidity Range	Discharge	-20~60℃ 60±25%R.H.
13	Storage temperature for a long time	-20~25℃ 60±25%R.H.		Do not storage exceed half year. Must charge once when storage for half year. must charge the battery which with protect circuit when storage for three months.

Similar Pictures for 3.2V LiFePO4rechargeable li ion battery cell for Bluetooth Smart Card Reader

3.2V LiFePO4 Battery 14500 500mAh Power Type for Grid Stabilization Energy Storage Systems

Our serve:

We provide 24 months warranty,will change new products for you if quality problems.L Your inquiry related to our products or prices will be replied in 24 hours

We will track the shipping status time by time so that buyer can receive our goods in time and safely.

We could design all of the battery packs according to your requirements and provide OEM service.

We sincerely welcome you to visit and cooperate with us for business future.

Production Detail

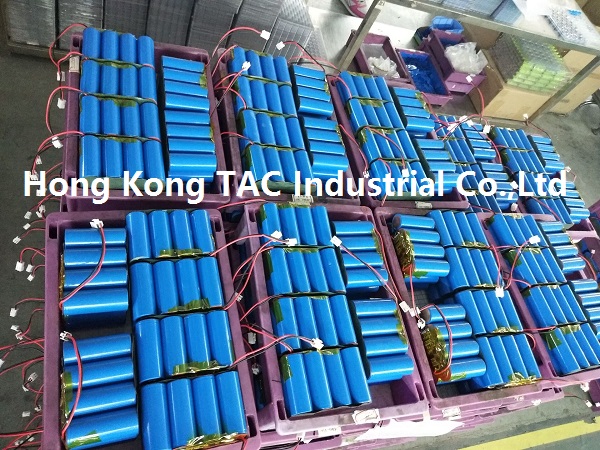

After we assembled the cell with customer's require , we aging the battery pack one by one before shrink with pvc .

Production List For Lifepo4 Battery
