Deep Cycle 12v Lithium Battery Pack Storage 9.9Ah Replace GEL
Battery
Feature For Deep Cycle 12v Lithium Battery Pack Storage 9.9Ah
Replace GEL Battery
1. Thebattey pack can be replacement of Lead-Acid
battery,environmental protection pass ROHS
2. Longer life, more than 2000 cycles base on DOD 80%
3. Low self-discharge rate, less than 3% monthly
4. Lighter weight, with the best power-to-weight ratio
5. No memory effects
6. High charging & storage efficiency than normar lithium battery
7. Environment friendly, Non-toxic, non-contaminating and no rare
metal
Specification For Deep Cycle 12v Lithium Battery Pack Storage 9.9Ah
Replace GEL Battery
No. | Item | General Parameter | Remark |
1 | Rated Capacity | 9.0Ah | Standard discharge(0.2 C5)after standard charge(0.2 C5) |
2 | Minimal Rated Capacity | 9.0Ah |
3 | Nominal Voltage | 12.8V |
|
4 | Cycle Life | Higher than 60% of the Initial Capacity of the Cells | ◆Charge: CC@0.2C to 14.6V, then CV till current to 0.05C ◆Rest: 30min. ◆Discharge: 0.2C to 10.0V ◆Temperature:20±5℃ ◆Carry out 2000cycles |
5 | Discharge cut-off voltage | 10.0V | 10.0V( recommended) |
6 | Charging cut-off voltage | 14.8V | 14.6V (recommended) |
7 | Cell and assembly method |
|
|
IFR26650EC 3.0AH | 4S3P |
8 | Housing material | ABS+PC housing |
|
Charge and Discharge Data
9 | Standard charge | 0.2C constant current(CC) charge to 14.6V,then constant voltage
(CC)14.6V charge till charge current decline to ≤0.05C | Charge time : Approx 7h |
10 | Standard discharge | Constant current 0.2C Cut-off voltage 10.0V |
|
11 | Maximum Charge Current | 1C | (0.2C Recommended) |
12 | Continuous Discharge Current | 1C |
|
Peack Discharge Current | 5C |
|
13 | Operation Temperature Range | Charge: 0~45℃ | 60±25%R.H.
|
Discharge: -10~60℃ |
14 | Storage Temperature Range | Less than 1 year : 0~25℃ | 60±25%R.H. at the shipment state |
Less than 3 months:-5~35℃ |
15 | Weight | Approx:1.6Kg |
|
16 | Max.Dimension | Height:151mm | 151*65*116mm |
Width: 65mm |
Length: 116mm |
Lead Time
5-7 days after the order confirm
30 days for OEM order
Packing for Battery Pack
One Lifepo4 battery pack were protect by cystosepiment and then put
into one strong paper carton
with UN38.3 transportation rules

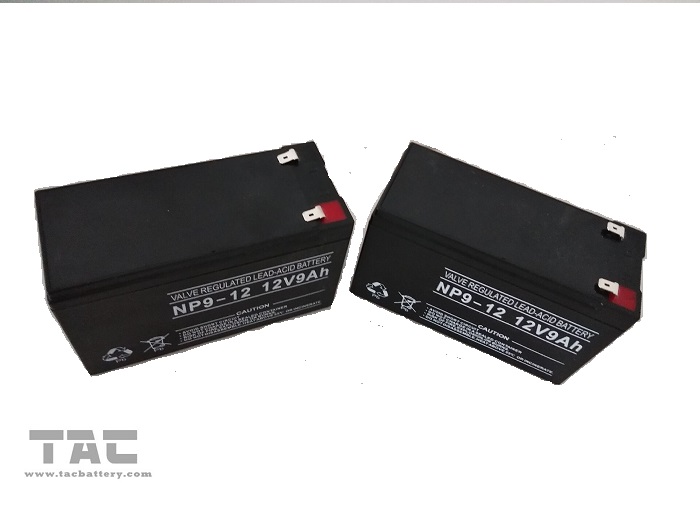

Production Picture
Model List for 12V Lithium Battery Replace Lead Acid Battery
We support low moq base on this price
Tag:12v Gel Car Battery,12V 9.9AH Power Tool Battery.
