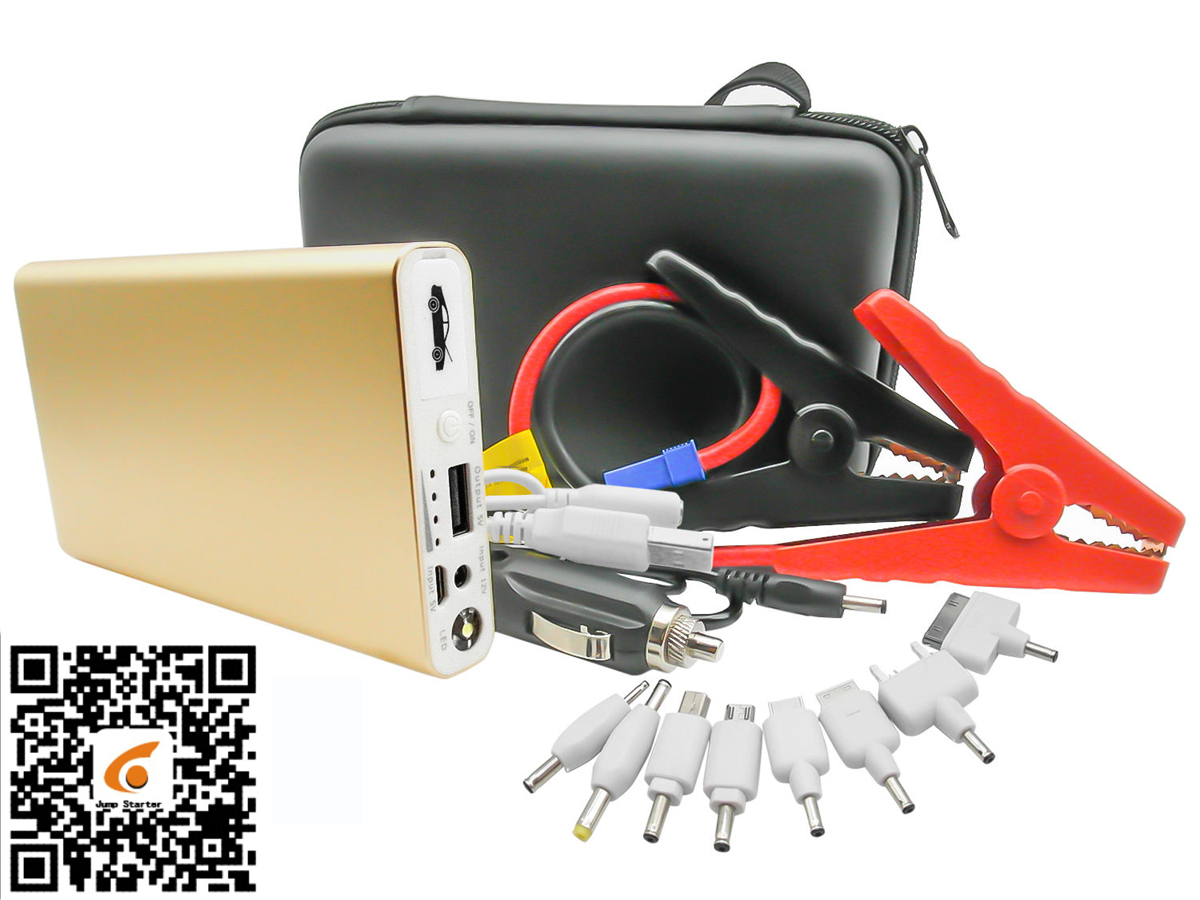

CE 12000mah Mobile Jump Starter Power Bank Battery Charger ABS + PC
Quick Detail:
☆ Place of Origin:China ☆ Brand Name:TAC ☆ Model Number:EC0020 ☆
Dimension:137*75*18mm
☆ Dimension:137*75*18mm ☆ Weght:300g
☆ Capacity:12000MAH ☆ Input:5V3A:12V1A
☆ Output: 12V1A ☆ Star Current: 300A
☆ Car Output:12V ☆ Peak Current:600A
☆ Socket Type: USB ☆ Life span:3-5years
☆ Material:ABS+PC ☆ Warranty:One Year
☆ Warranty:One Year
Packaging & Delivery:
| Packaging Detail: | Color box for each set, 20sets/CTN |
| Delivery Detail: | Samples 1-3days; Quantity Order 7-15days |
Specifications:
| Products | 12000mah Multi-function Auto Car Jump Starter Mobile Power Bank
Battery Charger. |
| Model NO | EC0020 |
| Capacity | 12000mAH |
| Input | 5V3A; 12V1A |
| Output | 12V1A |
| Car Output | 12V |
| Battery type | Polymer Lithium Ion for High Power Type |
| Dimension | 137*75*18mm |
| Charge Time | 4-5 Hours |
| Working temperature | -20-60°C |
| Weight | 300g |
| Lifespan | About 3-5 years |
| Warranty | One Year |
Auto Jump Starter Layout:
How to Charging for Jump Starter Itself:
☆ Life span:3-5years Plug the home adaptor into the universal
socket.
☆ Connect 12V 1A input port of Jump Starter to the other end of
home adaptor.
☆ Plug the car adapator into the socket of cigaretter lighter.
5. Connect 12V 1A input port of Jump Starter to the other end of
car adaptor
How to Use the Mini Jump Starter for car:
1. Make sure that the number of indicator light is not less than 3.
2. Connect the red battery clamp of jumper cable to vehicle’s
positive (+) battery terminal and connect
the black battery clamp of jumper cable to the vehicle’s negative
(-) battery terminal.
3. Plug the cord of jumper cable into the jump start socket.
4. Start the vehicle
5. WEhen the vehicle starts, remove jumper cable from Jump Starter
and disconnect red and black
clamps to the vehicle battery terminal within 30 seconds.
6. Leave the vehicle’s engine running.
How to Charging mobile phones or tablets:
1. Plug the switch cable B to USB 5V 2A output port
2. Select appropriate connector for your mobile phone or tablet and
connect it the switch cable
B and your mobile phone or tablet.
3. Press the switch button to charge.
Features:
☆ High-capacity lithium ion battery provides longer life and more
charge cycles
☆ Once full charged, the jump starter can start the car more than
20 times.
☆ LED indicator shows charging and battery status
☆ Protection board inside, with the function like over charge, over
discharge,
over-current, overload, under-voltage and short-circuit etc.
☆ Outdoor lighting & flah signal
☆ Fast charge, the charge time is about 4-5hours.
☆ Small size & light weight
☆ Broad application for all USB devices, including smartphones, mp3
players, tablets and digital products.
☆ 12 months warranty
☆ Suppy OEM & ODM and custom service
Advantages:
☆ Inside Li-polymer battery which is environment and much safer and
more stable, and UL listed.
☆ Each jump starter with Anti-explosion test, anti-reverse
protection,
short-circuit protection, overload protection, over-temperature
protection.
☆ Excellent production line for high quality products and punctual
delivery time.
☆ We are 100% responsible for our products,we consider Customer
first,quality first and Reputation first.
Contents:
☆ Jump Starter
☆ Jump Starter cable with clamps
☆ Car Charger
☆ Home Charger
Option Contents:
☆ Switch cable for mobile phone
☆ Switch cable for laptop
☆ Owner’s manual
☆ Air Pump
☆ Tool box
☆ Color Box
Q&A:
☆ What is the car jump starter?
Car jump starter is used to charge your car battery and start the
engine. Also, this is multi funcation,
except starting your vehicle, also apply to use to most of the
digital products, such as mobile phones,
laptops, cameras, etc.
☆ How to turn off the product?
The product will turn off automatically after 10 seconds
when no loading is detected or the charge
has completed.
☆ How long does full charge of the jump starter?
It takes 4 to 5 hours to full charge car jump starter with 12V/1A
charger.
☆ How many times can this appliance on full charge start the vehicle?
Each jump starter with different capacity, approximately 20 to 40
times.
☆ How long will the power of the battery remains?
3-6 months, however, we suggest you charge it every 3 months. And
the LED illumination is another
extra function used commonly, long press the switch button to start
the flashlight, 3 modes for
options: hard light; frequent flash; SOS. The mode will be changed
after one more press.
☆ Months, however, we suggest you charge it every 3 months. And the
LED illumination is another
extra function used commonly, long press the switch button to start
the flashlight, 3 modes for
options: hard light; frequent flash; SOS. The mode will be changed
