Quick Detail for ES4810 Communication Base Station Battery Packs MCN ICR18650 for Bank Up Power

NO.	Item	Specification	Remark
Place of Origin:	Guangdong China	Brand Name:	TAC
Model Name:	ES4810-E2-A-02	Capacity:	10AH
Model Number:	PLIP0781	Working current:	48V
Size:	L292W480T44(mm)	Weight:	Approx 7KG
Features: 1. Portable communication base station battery packs ES4810 Lithium battery. 2. NCM 18650 2200mAh 13S5P for ES4810 48V 10Ah rechargeable lithium-ion battery packs. 3. High capacity for above 10Ah cut off 42V. 4. The cycling lifespan 800 times (80%DOD). 5. Take in handrail convenient and easy use 6. No memory effect, Low self-discharge rate. 7. Good storage characteristic and good high temp performance. 8. Environmental friendly. 9. Application for UPS and industrial equipment power supply.

ES4810 Communication Base Station Battery Packs ICR18650 Cell Specification:

ES4810 Communication Base Station Battery Packs 48V10AH Specification:

No.	Item	Specification
1	Combination method	13S5P
2	Rated Capacity	10AH
3	Nominal Voltage	48V
4	Voltage at end of Discharge	42V
5	Charging Voltage	54.6V
6	Internal Impedance	≤300mΩ
7	Maximum Continuous Charge Current	10A
8	Maximum Continuous Discharge Current	10A
9	Dimensions	L292W480T44(mm)
10	Weight	Approx 7 KG

Item	Symbol	Content
Over charge Protection	VDET1	Over charge detection voltage
	tVDET1	Over charge detection delay time
	VREL1	Over charge release voltage
Over discharge protection	VDET2	Over discharge detection voltage
	tVDET2	Over discharge detection delay time
	VREL2	Over discharge release voltage
Cell balance		Bleed Start Point
Cell balance		Bleed Current
working current		Continuous Output Discharging Current
Over current protection	IDP	Over current detection current
	tVDET3	Detection delay time
		Release condition
Short protection		Detection condition
Short protection		Release condition
Interior resistance	RDS	Main loop electrify resistance
Current consumption	IDD	Current consume in Idle mode
Temperature protection		Discharge:65℃ Charging:65℃

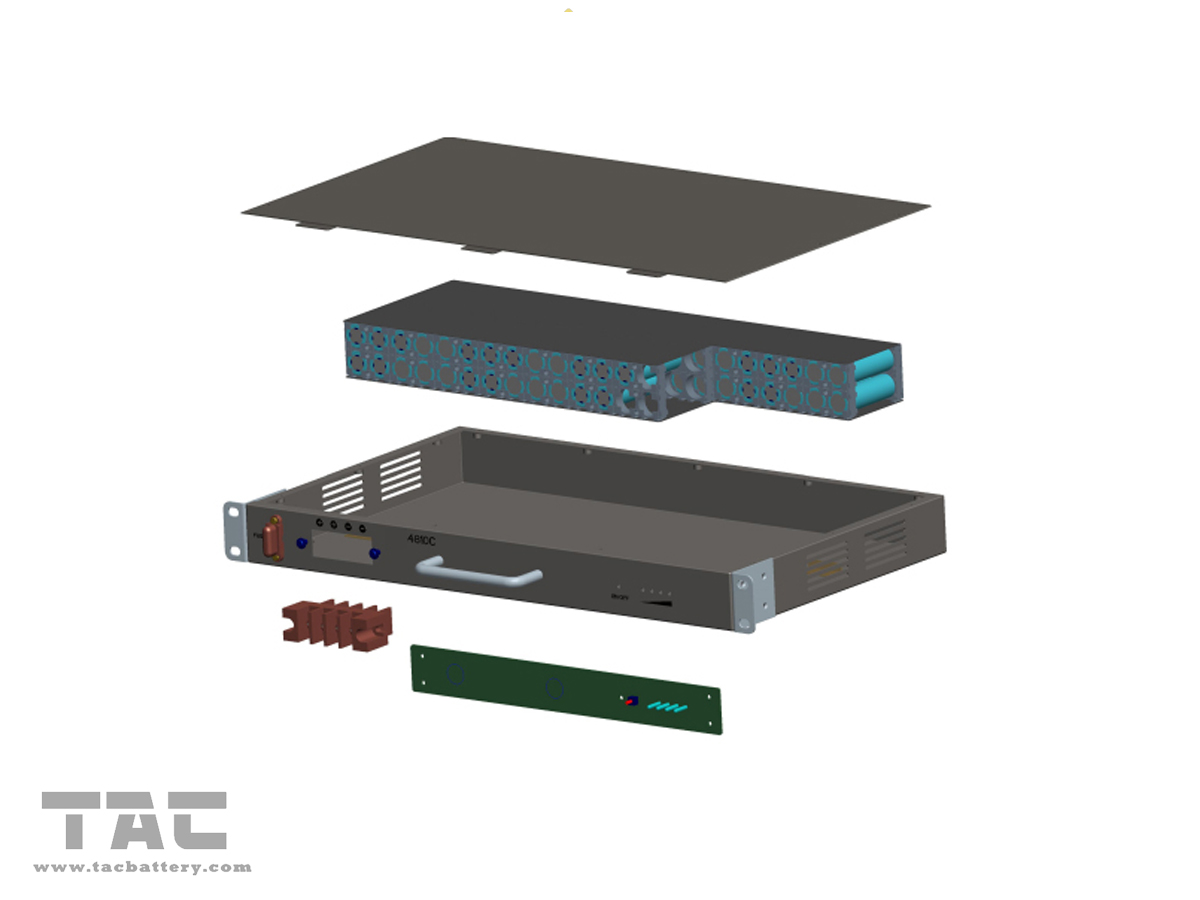

ES4810 Communication Base Station Battery Packs Inner Structure:

Similar Battery Pack

48V 20AH
