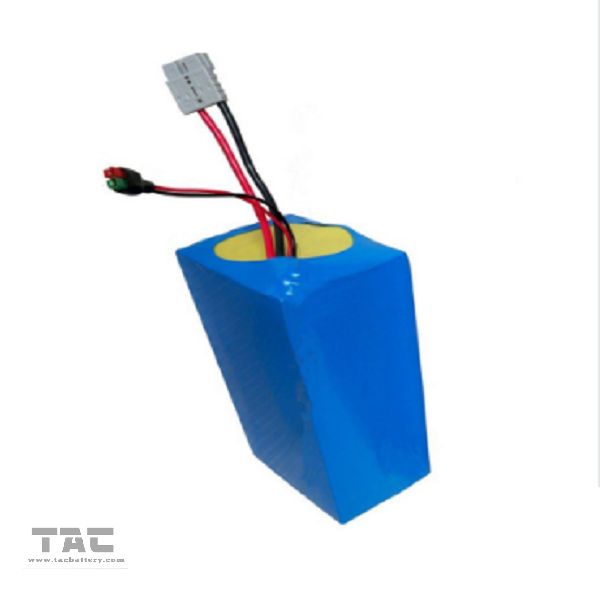

Lithium Battery For Solar Light Medical Device 48V 50AH long circle
life
Lithium Ion Solar Battery --2.5kWH 48V 50Ah Lithium Ion Solar
Battery Power Wall ESS System Residential
Quick Data:
No.
| Item
| General Parameter
| Remark
|
| 1 | Rated Capacity
| Typical
| 50Ah | Standard discharge(0.2C5A) after Standard charge
|
Minimum
| 50Ah |
| 2 | Nominal Voltage
| 48V | Mean Operation Voltage
|
| 3 | Internal Impedance
| ≤180mΩ | Internal resistance measured at AC 1KHZ after 50% charge
The measure must uses the new batteries that within one week after
shipment and cycles less than 5 times
|
| 4 | Dimension
| Thickness/:27.5±0.5mm | Initial Dimension
27135180F |
| Width/:136±0.5mm |
| Height/:181±0.5mm |
| 5 | Weight
| 1.3±0.03kg | Approx |
| 6 | Standard charge
| Constant Current 0.2C5A Constant Voltage3.65V 0.01C5A cut-off
| Charge time : Approx4H
|
| 7 | Rapid Charge
| Constant Current 1C5A Constant Voltage3.65V 0.01C5A cut-off
| Charge time : Approx1.5 H
|
| 8 | Standard discharge
| Constant current 0.2C5A end voltage2.5 V
| |
| 9 | Maximum discharge current
| Constant current 1C5A end voltage2.5 V
| |
Detail Sec For Battery Pack
1. Parameters PHES2.9KWhPV1
2. Battery Type Li-Ion
3. Rated Voltage/ Capacity 48V/50Ah
4. Rated Energy 2.4KWh
5. Usable Capacity (80%DOD) 2.3KWh
6. Voltage Range 45～54.7VDC
7. Rated Discharge Current 25A
8. Max. Discharge Current 60A
9. Standard Charge Current 25A
10. Max.Charge Current 60A
11. Operating Temperature Charge:0°C ~50°C；
12. Discharge -20°C~50°C;
13. Storage Temperature -20°C~50°C
14. Ambient Humidity Max. 90[%Rh] *Non Condensing
15. Expected Lifetime (25°C/+77℉) ＞5 Years
16. Cycle life (80% DOD, 25°C/+77℉) ＞2000Cycles
Similar Model List
| Type | Nominal Voltage | Out put Voltage | Nominal Capacity | Dimension(L*W*H) | Weight | Max Discharging Current |
| Max | Min |
| INM48V40AH | 48V | 51.8V | 42V | 40Ah | 265*150*340mm | 11Kg | 200A |
| INM60V25AH | 60V | 62.9V | 51V | 25Ah | 270*74*396mm | 12Kg | 125A |
| INM60V40AH | 40h | 270*115*396 | 21Kg | 200A |
| INM60V60AH | 60Ah | 270*155*396 | 31Kg | 200A |
| INM72V25AH | 72V | 74V | 60V | 25Ah | 340*74*396mm | 15Kg | 125A |
| INM72V40AH | 40Ah | 340*115*396mm | 24Kg | 200A |
| INM72V50AH | 50Ah | 340*135*396mm | 30Kg | 200A |
| INM72V60AH | 60Ah | 340*155*396mm | 35Kg | 200A |
Application for Lithium Battery For Solar Light / Medical Device
48V 50AH long circle life
portable back up
Energy storage system
EV ECAR E BOAT
Lithium Ion Solar Battery --10kWH 48V 200Ah Lithium Ion Solar
Battery Power Wall ESS System Residential
Packing Detail
The battery pack is big size and heavy the battery pack protect by
specially bubble box
and one battery pack put into one paper carton
How to order:
1. Tell us Order Quantity, Type & capacity, Package and other
Requirement;
2. After the first Step, we will make a PI for you;
3. After you confirm the details in the PI and make the payment, we
will arrange the production for you.
Best service:
(1) Your inquiry related to our products rice will be replied in 24
hours.
(2) Experienced staffs to answer all your enquire in fluent
English.
(3) We make the OEM and ODM service for more than 9 years.
(4) Protection of your sales area, ideas of design and all your
private information.
(5)No matter big order or small order , we will provide all the
best quality , best service.
After-sale service:
1. 5 years warranty
2. Choose the cheapest and safest shipping company
3. Track the order until you get the goods
4. Welcome any feedback and advice for our products.
Extra service:
1. MOQ: 1pcs Sample order is available
2. OEM: The larger the quantity the cheaper the price.
3. ODM: 10000pcs, keep your design privately. And won’t supply it
to others.
4. Provide designed package depends on your need
Others
| 1.Are you factory? |
:) Yes, we are factory in Guangzhou China. Welcome to visit our
company at any time when you come to China.
|
| 2.OEM&ODM are available? |
:) Sure, OEM&ODM are welcome and Logo can be customized too.
|
| 3.What is your OEM MOQ? |
:) lithium battery: 10pcs.
|
| 4.What is the warranty? |
| :) 1 years' warranty, 500 times circle |
Other similar production Photos
