LiFePO4 Battery Pack 26650 12v 18ah For Solar Street Lighting

Product Categories

Guang Zhou Sunland New Energy Technology Co., Ltd.

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Add to Cart

Quick Detail:

Model Number:	12.8V18Ah	Brand Name:	TAC-PIFP0753
Nominal Voltage:	12.8V	Rated Capacity:	18AH
Type:	LiFePO4 Lithium Battery	Size:	T33:W159:H272mm
Weight:	2.1KG	Certification	CE, UN, ROHS, MSDS REACH Compliance
OEM & ODM:	Support	Warranty:	12Months

LiFePO4 Battery Pack 26650 12v 18ah For Solar Street Lighting Specification:

No.	Items	Specifications		Remark
1	Nominal Capacity	3000mAh		0.2C Standard discharge 0.2C
2	Minimum Capacity	2940mAh		0.2C Standard discharge 0.2C
3	Nominal Voltage	3.2V		Mean Operation Voltage
4	Delivery voltage	3.2~3.3V		Within 10 days from Factory
5	Charge Voltage	3.65V±0.03V		By standard charge method
7	Charge current	0.2C	600mA	Standard charge, charge time about 6h(Ref)
7	Charge current	0.5C	1500mA	Rapid Charge, charge time about: 3h(Ref)
9	Cell Internal Impedance	≤40mΩ		Internal resistance measured at AC 1KH_Z after 50% charge

IFR26650 4S6P 12.8V 18AH LiFePO4 Battery 12V Lithium Battery Pack Specification:

No	Item	Parameter
1	Nominal Voltage	12.8V
2	Rated Capacity	18AH
3	Max.constant discharge current	13.5A
4	Charging Mode	CC/CV
5	Charging Current	3-6A
6	Working Voltage Range	10-14.6V
7	Over charging Protection Voltage	15.6V
8	Over discharging Protection Voltage	10V
9	Communication	Nope
10	Others	Nope
11	Life Cycles	≥1500 times capacity≥nominal capacity*80%
12	Working Temp.(CC/CV)	Working	0℃~65℃
13	Working Temp.(CC/CV)	Storage	-20℃~45℃
14	Dimension	T	33mm
		W	159mm
		H	272mm
15	Weight	2.1kg
16	Cables/ Connectors	Cables OEM General Water-proof Connectors (As follows)

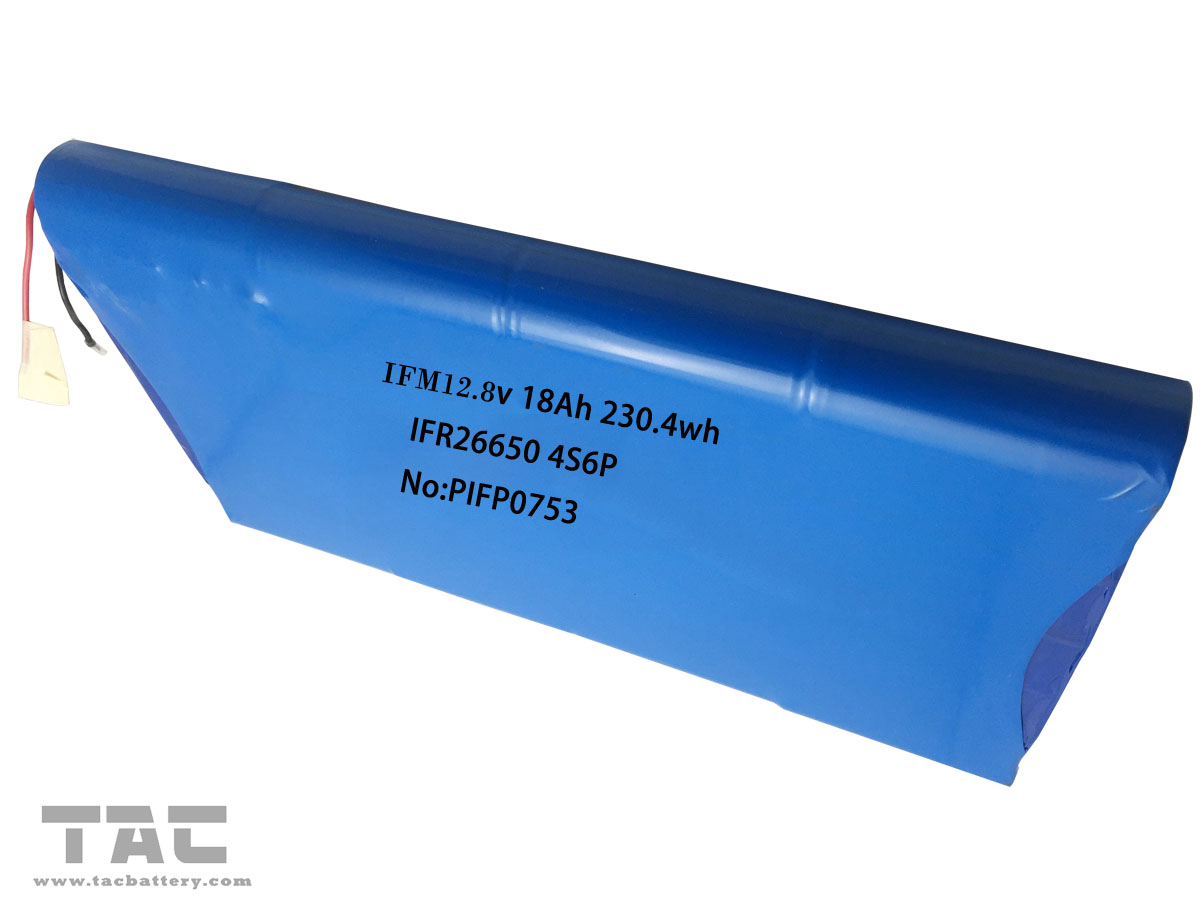

Picture for LiFePO4 Battery Pack 26650 12v 18ah For Solar Street Lighting

Product Advantages

Small medical equipment and portable equipment
Remote control cars, boat, aircraft, toys
Large-scale electric vehicles: electric bus, electric car, E-Tour Car
Light electric car: e-bike, e-scooter,e-motorcycle, electric golf cart, e-wheelchair
E-tool: electric drill, electric saw, lawn mower and so on
Solar and wind power generation energy storage devices, Telecom base Station

The battery were wrapped by double level sponge bag, one set for one inner box, and 8-10 box for one standard paper carton
