IFM12.8V 12Ah LiFePo4 Battery Pack 26650 4S4P For Solar Street Light

    Buy cheap IFM12.8V 12Ah LiFePo4 Battery Pack 26650 4S4P For Solar Street Light from wholesalers

    Buy cheap IFM12.8V 12Ah LiFePo4 Battery Pack 26650 4S4P For Solar Street Light from wholesalers
    • Buy cheap IFM12.8V 12Ah LiFePo4 Battery Pack 26650 4S4P For Solar Street Light from wholesalers
    • Buy cheap IFM12.8V 12Ah LiFePo4 Battery Pack 26650 4S4P For Solar Street Light from wholesalers

    IFM12.8V 12Ah LiFePo4 Battery Pack 26650 4S4P For Solar Street Light

    Ask Lasest Price
    Brand Name : TAC OEM ODM
    Model Number : IFM12.8V12Ah
    Certification : MSDS REACH ROHS
    Price : usd 100-200
    Payment Terms : L/C, T/T, Western Union,Paypal
    Delivery Time : 7-25 days after order confirm
    Supply Ability : 50000pcs
    • Product Details
    • Company Profile

    IFM12.8V 12Ah LiFePo4 Battery Pack 26650 4S4P For Solar Street Light

    IFM12.8V12Ah LiFePo4 Battery Pack 26650 4S4P for Solar Street Light

    Feature for IFM12.8V12Ah LiFePo4 Battery Pack 26650 4S4P for Solar street light

    1. IFM12.8V12Ah LiFePo4 Battery Pack made by IFR 26650 3AH 3.2V via assembled in 4S4P.

    2. Safe battery pack with battery manager system

    3. Standard size for 26650 meet various application

    4. Long cycle life: over 2000 times charge and discharge circle

    5. No pollution,eco-friendly passed Rohs

    8. MOQ: 2set for samples and 50set for Mass production are workable


    Quick Detail:


    Model Number:12.8V12AhBrand Name:TAC-PIFP0748
    Nominal Voltage:12.8VRated Capacity:12AH
    Type:LiFePO4 Lithium BatterySize:T33:W320:H272mm
    Weight:1.4KGCertificationUN, ROHS, REACH Compliance
    OEM & ODM:SupportWarranty:12months

    IFM12.8V12Ah LiFePo4 Battery Pack 26650 4S4P Cell Specification:


    No.ItemsSpecifications
    1

    Nominal Capacity


    3000mAh
    2

    Minimum Capacity


    2940mAh
    3

    Nominal Voltage


    3.2V
    4

    Delivery voltage


    3.2~3.3V
    5

    Charge Voltage


    3.65V±0.03V
    6

    Standard charging method


    0.2C constant current,3.65V constant voltage charge to 3.65V,continue charging till current decline to ≤0.01C
    7

    Charge current


    0.2C600mA
    0.5C1500mA
    8

    Standard discharging method


    0.2C constant current discharge to2.0V,
    9

    Cell Internal Impedance


    ≤40mΩ

    IFM12.8V12Ah LiFePO4 Battery Pack 26650 4S4P Application:


    1. Solar street light
    2. Such as e-bike
    3. Scooter
    4. Electric tool
    5. Electric drill
    6. Electric saw
    7. Small medical equipment
    8. Portable equipment

    Packing Detail

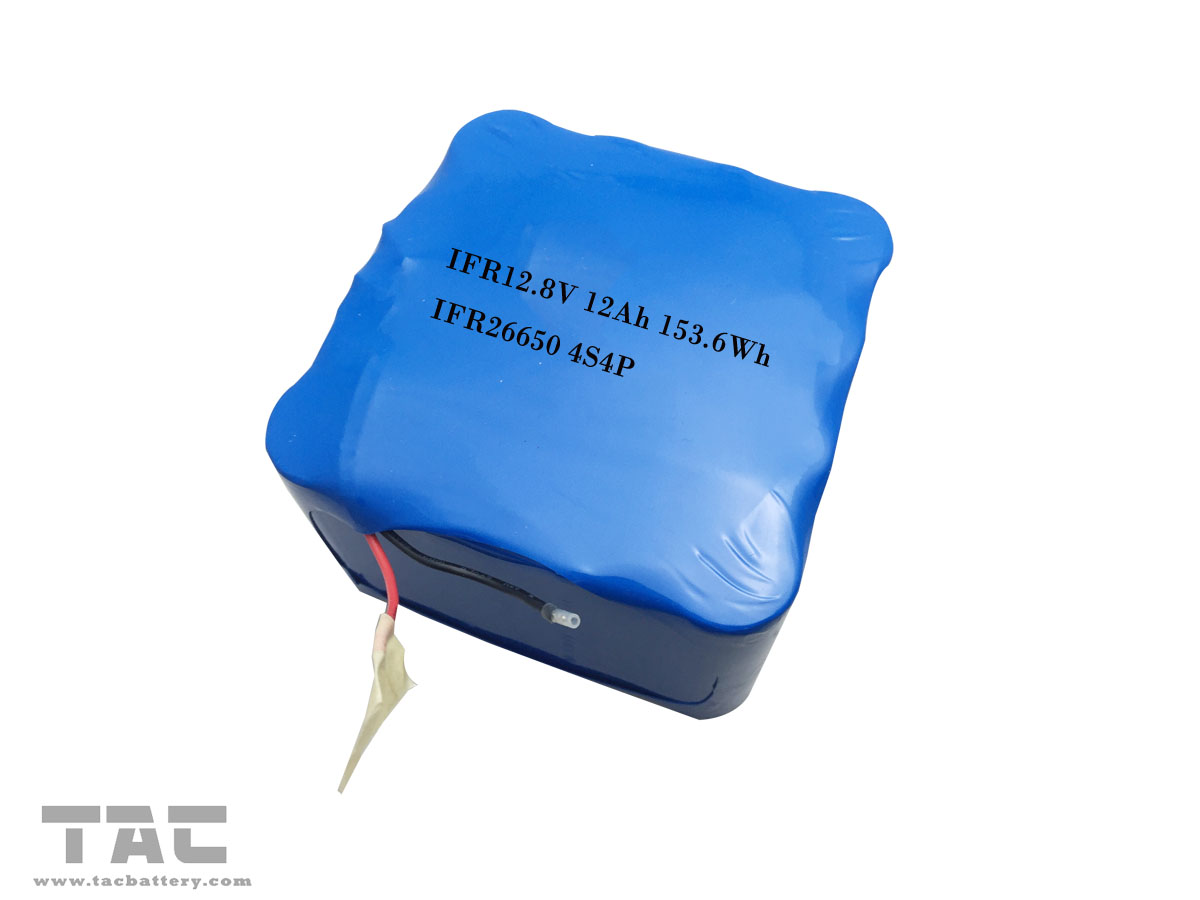

    Picture for 12.8V12Ah LiFePo4 Battery Pack:



    Quality Control


    we check the voltage and internal resistance of each cell , to ensure the difference among the cells are within the required value to keep the high consistency for battery pack


    Period of Warranty

    The period of warranty is 12 months from the date of shipment. TAC guarantees to give a

    replacement in case of battery with defects proven due to manufacturing process instead of the customer abuse and misuse.


    Storing the Batteries

    The batteries should be stored at room temperature, charged to about 30% to 50% of capacity.
    We recommend that battery to be charged once each three months to prevent over-discharge


    TAC BATTERY
