12V 24AH Lithium-ion Battery Pack for Replace the Lead Acid Battery Pack

Ask Lasest Price
Brand Name :	TAC OEM ODM
Model Number :	IFM12-500E2
Certification :	MSDS REACH ROHS
Price :	usd 100- 200
Payment Terms :	L/C, T/T, Western Union
Supply Ability :	1000units/days
Delivery Time :	7-25 days after order confirm

Add to Cart

Product Details
Company Profile

12V 24AH Lithium-ion Battery Pack for Replace the Lead Acid Battery Pack

Feature for 12V 24AH Lithium-ion Battery Pack for Replace the Lead Acid Battery Pack

1.With the wide temperature,can be use for outdoor street lamp

2.High convert ratio and environmental protection.

3.Longer cycle life, more than 2000 cycles
5.Low self-discharge rate, less than 3% monthly
6.Environment friendly, Non-toxic, non-contaminating and no rare metal

Specification for 12V 24AH Lithium-ion Battery Pack for Replace the Lead Acid Battery Pack

No.	Item	General Parameter	Remark
1	Rated Capacity	24Ah	Standard discharge(0.2 C5)after standard charge(0.2 C5)
2	Minimal Rated Capacity	23.5Ah
3	Nominal Voltage	12.8V
4	Cycle Life	Higher than 60% of the Initial Capacity of the Cells	◆Charge: CC@0.2C to 14.6V, then CV till current to 0.05C ◆Rest: 30min. ◆Discharge: 0.2C to 10.0V ◆Temperature:20±5℃ ◆Carry out 2000cycles
5	Discharge cut-off voltage	8V	10.0V( recommended)
6	Charging cut-off voltage	14.6V	14.6V (recommended)
7	Cell and assembly method	IFR26650EC-3.0AH	4S8P
8	Housing material	abs+pc
9	Standard charge	0.2C constant current(CC) charge to 14.6V,then constant voltage (CC)14.6V charge till charge current decline to ≤0.05C	Charge time : Approx 7h
10	Standard discharge	Constant current 0.2C Cut-off voltage 8.0V
11	Maximum Charge Current	20A
12	Continuous Discharge Current	30A
13	Operation Temperature Range	Charge: 0~45℃	60±25%R.H.
13	Operation Temperature Range	Discharge: -10~60℃	60±25%R.H.
14	Storage Temperature Range	Less than 1 year : 0~25℃	60±25%R.H. at the shipment state
14	Storage Temperature Range	Less than 3 months:-5~35℃	60±25%R.H. at the shipment state
15	Weight	Approx:5.1Kg
16	Max.Dimension	Height:398mm
		Width: 80mm
		Length: 110mm

Application Scenarios

The battery pack can replace for lead acid battery and used for various Energy storage sysytem

E-V ,, E-Car

Packing

Packing for battery without housing

The packing for battery with housing

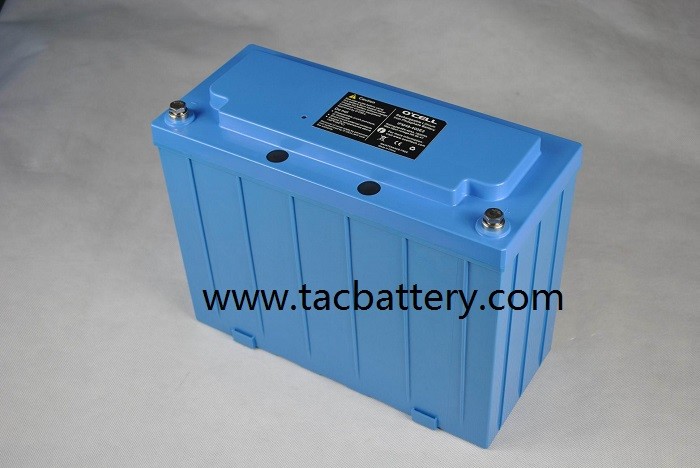

Picture for 12V 24AH Lithium-ion Battery Pack for Replace the Lead Acid Battery Pack

12V 24AH Lithium-ion Battery Pack for Replace the Lead Acid Battery Pack
