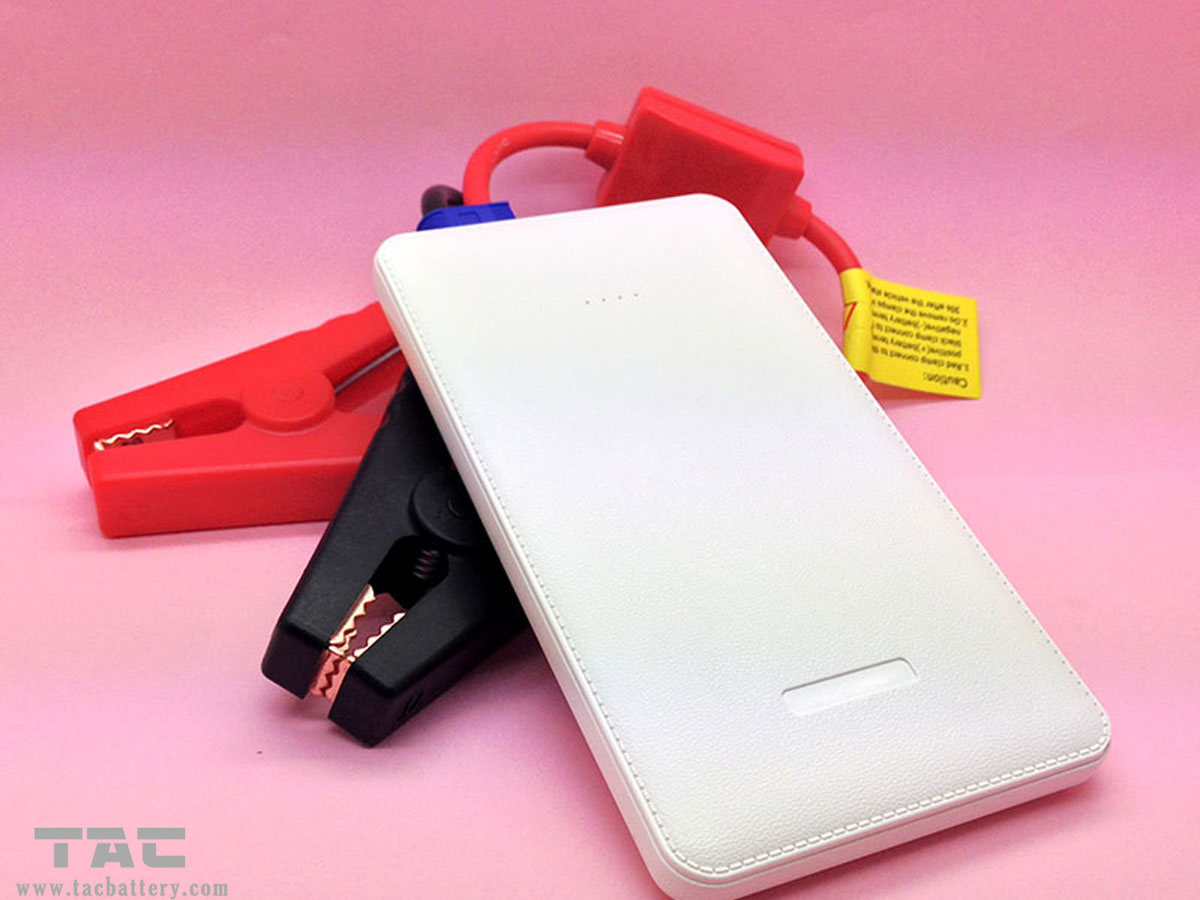

Ultra-Thin Multifunction Jump Starter Power Bank 5400mAH 140 x 80 x 15mm

Quick Detail:

Specifications:

Mini Jump Starter Operation Guidance

Indicator Lights

Press the switch button to check the capacity of Jump Starter.

When charging, indicator lights will flash one by one. The number of solid indicator lights indicates the battery capacity of Jump Starter. Full indicator lights are solid when charging is pause or complete.

Mini Jump Starter Layout:

1. LED illumination Light
2. 19V voltage output indicator light
3. 16V voltage output indicator light
4. 12V voltage output indicator light
5. 12V/16V/19V 2A/3.5A/3.5A outlet
6. Electric quantity indicator light
7. Key Switch
8. USB 5A--2A outlet
9. 12V-- 1A charge switch

12V--200A auto start outlet

How to Charging for Jump Starter Itself:

1. Plug the home adopt into the universal socket.
2. Connect 12V 1A input port of Jump Starter to the other end of home adopt.
3. Or
4. Plug the car adapator into the socket of cigarette lighter.
5. Connect 12V 1A input port of Jump Starter to the other end of car adopt

How to Use the Mini Jump Starter for car:

1. Make sure that the number of indicator light is not less than 3.
2. Connect the red battery clamp of jumper cable to vehicle’s positive (+) battery terminal and connect the black battery clamp of jumper cable to the vehicle’s negative (-) battery terminal.
3. Plug the cord of jumper cable into the jump start socket.
4. Start the vehicle
5. When the vehicle starts, remove jumper cable from Jump Starter and disconnect red and black clamps to the vehicle battery terminal within 30 seconds.
6. Leave the vehicle’s engine running.

How to Charging mobile phones or tablets:

1. Plug the switch cable B to USB 5V 2A output port
2. Select appropriate connector for your mobile phone or tablet and connect it the switch cable B and your mobile phone or tablet.
3. Press the switch button to charge.

How to charge 12V vehicle products or 12V electronics:

1. Plug the optional switch cable to 12V 2A output port.
2. Connect the optional switch cable and 12V vehicle product or 12V electronics
3. Press the switch button to power supply.

LED Illumination:

Press the switch button 3 seconds to start the LED illumination and then 4 modes of LED light appear in sequence ( normal, strobe, SOS, off) if you press lightly.

Features:

• High-capacity lithium ion battery provides longer life and more charge cycles

• Once full charged, the jump starter can start the car more than 20 times.

• LED indicator shows charging and battery status

• Protection board inside, with the function like over charge, over discharge, over-current, overload, under-voltage and short-circuit etc.

• Outdoor lighting & flan signal

• Fast charge, the charge time is about 4-5hours.

• Small size & light weight

• Broad application for all USB devices, including smart phones, mp3 players, tablets and digital products.

• 12 months warranty

• Sappy OEM & ODM and custom service

Advantages:

• Inside Li-polymer battery which is environment and much safer and more stable, and UL listed.

• Each jump starter with Anti-explosion test, anti-reverse protection, short-circuit protection, overload protection, over-temperature protection.

• Excellent production line for high quality products and punctual delivery time.

• We are 100% responsible for our products,we consider Customer first,quality first and Reputation first.

Contents:

1. Jump Starter
2. Jump Starter cable with clamps
3. Car Charger
4. Home Charger

Option Contents:

1. Switch cable for mobile phone
2. Switch cable for laptop
3. Owner’s manual
4. Air Pump
5. Tool box
6. Color Box

Q&A:

1. What is the car jump starter?
Car jump starter is used to charge your car battery and start the engine. Also, this is multi function, except starting your vehicle, also apply to use to most of the digital products, such as mobile phones, laptops, cameras, etc.

2. How to turn off the product?
The product will turn off automatically after 10 seconds when no loading is detected or the charge has completed.

3. How long does full charge of the jump starter?
It takes 4 to 5 hours to full charge car jump starter with 12V/1A charger.

4. How many times can this appliance on full charge start the vehicle?
Each jump starter with different capacity, approximately 20 to 40 times.

5. How long will the power of the battery remains?
3-6 months, however, we suggest you charge it every 3 months. And the LED illumination is another extra function used commonly, long press the switch button to start the flashlight, 3 modes for options: hard light; frequent flash; SOS. The mode will be changed after one more press.

6. What is about the warranty?
Warranty is 12 months.

Guangzhou Sunland New Energy Technology Co., Ltd. (Sunland Power) is a senior professional service provider of battery application. Aiming at serving industrial users, it is dedicated to providing industrial users with optimized battery supporting solutions and safe, environmental friendly and cost-effective battery products.
It has a R & D, engineering and management team with more than 10 years of industry experience
From upstream to downstream, the battery industry has the advantage of vertical integration
Specializing in batteries, battery packs, battery management systems and energy solutions
The products are widely used in medical devices, coal mine security, electronic appliances, power supply and standby energy storage system. For example, the power supply system of electric bicycle; Solar energy storage power supply system, UPS backup power supply system. At the same time, it is also an ideal choice for vehicle starting power supply, military painting and other fields.
We provide professional design and customization services according to the special needs of customers.
