Rechargeable 3.2V LiFePO4 Battery Portable For Medical Device IFR14505 AA

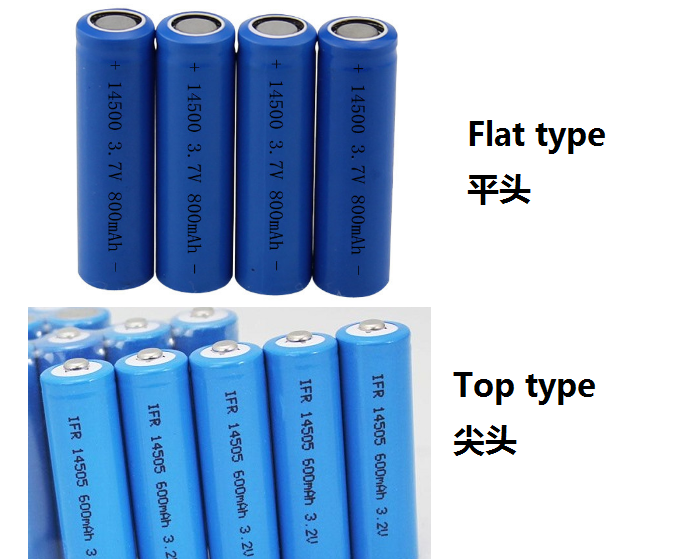

Some company called this model 14505 also, in order to avoid misunderstand , pls take close attention to below information

IFR14500 3.2v flat type

IFR14505 3.2V Top type

The size is High:50.0±0.5mm Diameter: 14.3±0.2 mm

Pls check the max size if your measure with strict require .

Features for Rechargeable 3.2V LiFePO4 Battery Portable For Medical Device IFR14505 AA

1. Model name:IFR14500/AA 500mAh 1.6Wh
2. There are IFR14500/AA 200mAh/250mAh/300mAh/400mAh/500mAh/600mAh available
3. The application are widely,for street light,solar product and so on.
4. Deep cycle life,it is about 2000 times

Application:

1. Portable high power devices

2. Stationary battery backup systems

3. Grid stabilization energy storage systems

4. Commercial truck and bus hybrid electric vehicles (HEVs)

BatterySpecification List:

3.2V LiFePO4 Battery 14500 500mAh Power Type for Grid Stabilization Energy Storage Systems

10	Maximum charge current	1C	500mA	For continuous charging mod
11	Maximum discharge current	3C	1500mA	For continuous discharge mod(Discharge capacity for more than 80% of the nominal capacity)
12	Operation Temperature and relative humidity Range	Charge	0~45℃ 60±25%R.H.	Charge at a very low temperature such as blew 0℃,will be get a lower capacity and reduce cycle life of the battery
		Discharge	-20~60℃ 60±25%R.H.
13	Storage temperature for a long time	-20~25℃ 60±25%R.H.		Do not storage exceed half year. Must charge once when storage for half year. must charge the battery which with protect circuit when storage for three months.

Packaging for Bulk

Regarding of the packaging information for the Rechargeable 3.2V LiFePO4 Battery Portable For Medical Device IFR14505 AA Bulk cell,the battery was separated by paper clapboard , 50 pcs in one box , 8 box in one carton.

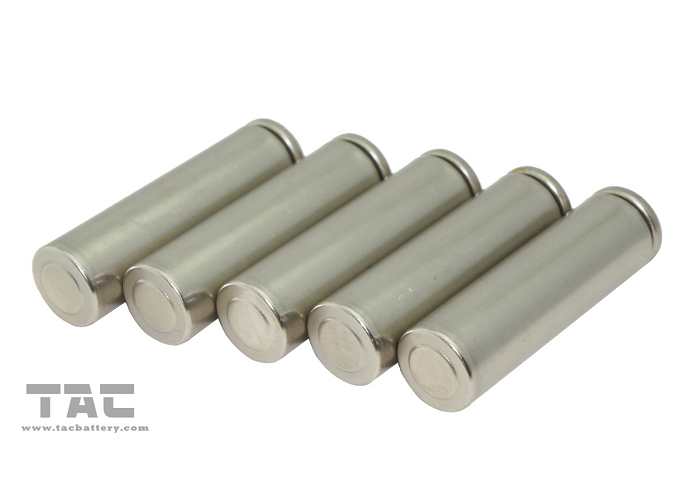

Pictures For Rechargeable 3.2V LiFePO4 Battery Portable For Medical Device IFR14505 AA Bare cell

The normal package for blue PVC jacket picture similar as below

Interior Structure for 3.2V LiFePO4 Battery Portable For Medical Device IFR14505

The similar size for LIFEPO4 Battery

ITEM	CAPACITY	VOLTAGE
IFR10280	80MAH	3.2V
IFR10440	250MAH	3.2V
IFR14500	750MAH	3.2V
IFR17335	800MAH	3.2V
IFR18500	1500MAH	3.2V
IFR18650	2000MAH	3.2V
IFR26650	3300MAH	3.2V
IFR32650	5000MAH	3.2V

Guangzhou Sunland New Energy Technology Co., Ltd. (Sunland Power) is a senior professional service provider of battery application. Aiming at serving industrial users, it is dedicated to providing industrial users with optimized battery supporting solutions and safe, environmental friendly and cost-effective battery products.
It has a R & D, engineering and management team with more than 10 years of industry experience
From upstream to downstream, the battery industry has the advantage of vertical integration
Specializing in batteries, battery packs, battery management systems and energy solutions
The products are widely used in medical devices, coal mine security, electronic appliances, power supply and standby energy storage system. For example, the power supply system of electric bicycle; Solar energy storage power supply system, UPS backup power supply system. At the same time, it is also an ideal choice for vehicle starting power supply, military painting and other fields.
We provide professional design and customization services according to the special needs of customers.
