Rechargeable Lithium Ion Battery 3.7 V 700 mAh for Cyber Physical System GSP503048

    Buy cheap Rechargeable Lithium Ion Battery 3.7 V 700 mAh for Cyber Physical System GSP503048 from wholesalers

    Buy cheap Rechargeable Lithium Ion Battery 3.7 V 700 mAh for Cyber Physical System GSP503048 from wholesalers
    • Buy cheap Rechargeable Lithium Ion Battery 3.7 V 700 mAh for Cyber Physical System GSP503048 from wholesalers
    • Buy cheap Rechargeable Lithium Ion Battery 3.7 V 700 mAh for Cyber Physical System GSP503048 from wholesalers
    • Buy cheap Rechargeable Lithium Ion Battery 3.7 V 700 mAh for Cyber Physical System GSP503048 from wholesalers

    Rechargeable Lithium Ion Battery 3.7 V 700 mAh for Cyber Physical System GSP503048

    Ask Lasest Price
    Brand Name : TAC
    Model Number : LP053048
    Certification : IEC62133 UL1642, Rohs
    Price : usd3-5
    Payment Terms : T/T, LC,Paypal etc.
    Supply Ability : 30K/Day
    Delivery Time : 14days after order
    • Product Details
    • Company Profile

    Rechargeable Lithium Ion Battery 3.7 V 700 mAh for Cyber Physical System GSP503048

    Rechargeable Lithium Ion Battery 3.7 V 700 mAh for Cyber Physical System GSP503048
    Features for Rechargeable Lithium Ion Battery 3.7 V 700 mAh for Cyber Physical System GSP503048


    1. Nominal Voltage3.7V,Rated Capacity 180mAh.
    2. LP503048 3.7V 700mAh Li-Ion Polymer Rechargeable Battery for Cyber Physical System.
    3. Certification: IEC62133; UL1642
    4. Application: Intelligent systems such as robot, intelligent navigation, etc.Computing, communication, precise control, remote collaboration and self-government functions.
    5. High working voltage for single battery cells
    6. Pollution-free
    7. Long cycle life
    8. No memory effect
    9. PCM inside with short-circuit protection function,over-discharge, over charge, over current protection
    10. Good consistency, low self discharge
    11. Light weight, small and customized size
    12. Wide application for electronics and industry


    Specification for Rechargeable Lithium Ion Battery 3.7 V 700 mAh for Cyber Physical System GSP503048


    No.

    Items

    Specification

    Remark

    1

    Nominal Capacity

    700mAh

    0.2C Standard discharge

    2

    Nominal Voltage

    3.7V

    Mean Operation Voltage

    3

    Delivery voltage

    3.7~3.9V

    Within 10 days from Factory

    4

    Charge Voltage

    4.2V±0.03V

    By standard charge method

    5

    Cell Internal Impedance

    ≤60Ω


    6

    Maximum charge current

    0.5C

    For continuous charging mod

    7

    Maximum discharge current

    1C

    For continuous discharge mod


    8


    Operation Temperature and relative humidity Range

    Charge

    0~45℃ 60±25%R.H.

    Discharge

    -20~60℃ 60±25%R.H

    9

    Storage temperature for a long time

    -20~25℃
    60±25%R.H.

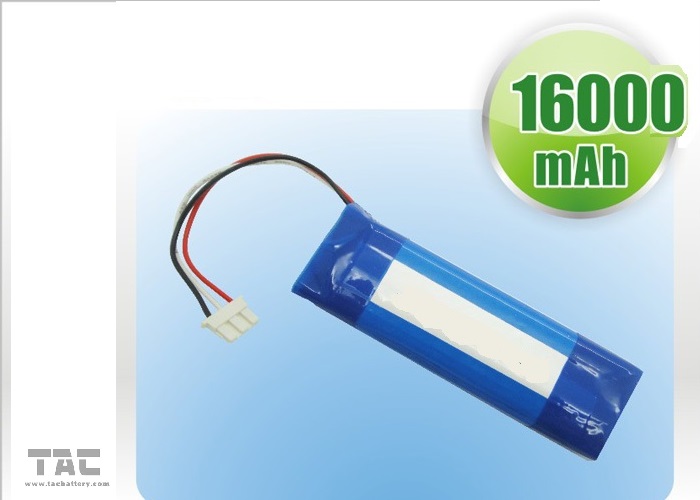

    Picture of GSP503048 3.7V 700mAh Li-Ion Polymer Rechargeable Battery for Cyber Physical System


    polymer battery pack for 16000mah high capacity



    Other Size

    Model

    Nominal Voltage (V)

    Typical Cap.

    Dimension(mm)

    (mm)

    Thickness

    Width

    Height

    073496DHP

    3.7

    2100

    7.8

    34

    96

    LP0567100

    3.7

    3400

    4.8

    67

    100

    LP066166

    3.7

    2750

    6.1

    61

    66

    LP555376

    3.7

    2300

    5.6

    53

    76

    LP085065

    3.7

    2600

    7.8

    50

    65

    LP085080

    3.7

    3400

    8

    50

    80

    LP0845131

    3.7

    5100

    7.5

    45

    131

    LP0831134

    3.7

    4000

    8.1

    31

    132

    LP55100100

    3.7

    5600

    5.5

    100

    100

    LP605590

    3.7

    3400

    6

    55

    90

    LP9051109

    3.7

    5500

    9

    51

    109

    LP9551119

    3.7

    6800

    9.5

    51

    119

    *LP7044125

    3.7

    4200

    7

    44

    125

    *LP7545135

    3.7

    4500

    7.5

    45

    135

    LP704374

    3.7

    2200

    7

    43

    74

    LP854374

    3.7

    3000

    8.5

    43

    74


    Packing Manner


    Safety Test Standard for PCB of Battery Pack


    Item

    Battery

    Condition

    		Test MethodRequirements
    Crush

    Fresh,

    Fully charged

    		Crush between two flat plates. Applied force is about 13kN(1.72Mpa) for 30min.

    No explosion,

    No fire

    Short

    Circuit


    Fresh,

    Fully charged

    Each test sample battery, in turn, is to be short-

    circuited by connecting the (+) and (-) terminals of the battery with a Cu wire having a maximum resistance load of 0.1Ω.Tests are to be conducted at room temperature(20±2℃ ).

    No explosion,

    No fire The Temperature of the surface of the Cells are lower than 150℃

    Short

    Circuit


    Fresh,

    Fully charged

    Each test sample battery, in turn, is to be short-

    circuited by connecting the (+) and (-) terminals of the battery with a Cu wire having a maximum resistance load of 0.1Ω.Tests are to be conducted at temperature(60±2℃ ).

    No explosion,

    No fire The Temperature of the surface of the Cells are lower than 150℃

    Impact

    Fresh,

    Fully charged

    		A 56mm diameter bar is inlayed into the bottom of a 10kg weight. And the weight is to be dropped from a height of 1m onto a sample battery and then the bar will be across the center of the sample.

    No explosion,

    No fire

    Forced

    Discharge

    Fresh,

    Fully charged

    		Discharge at a current of 1CmA for 2.5h.

    No explosion,

    No fire

    Nail

    Pricking

    (3mm)

    Fresh,

    Fully charged

    		Prick through the sample battery with a nail having a diameter of 3mm and remain 2h.

    No explosion,

    No fire

    Period of Warranty

    The period of warranty is 12 Months from the date of shipment. TAC guarantees to give a replacement in case of cells with defects proven due to manufacturing process instead of the customers abuse and misuse.

    Storing the Batteries

    The batteries should be stored at room temperature, charged to about 30% to 50% of capacity.
    We recommend that batteries be charged about once per year to prevent over discharge.


    Tac Battery Production lion for polymer lithium battery



    aging room
