Rechargeable Lithium Ion Cylindrical Battery LIR14430 700mAh For
Lighting
Battery Parameters for Rechargeable Lithium Ion Cylindrical Battery LIR14430 700mAh For
Lighting
Description | Unit | Specification | Remark |
Rated Capacity | mAh | 700 | Single cell |
Nominal Voltage | V | 3.7 | Single cell |
Charge cut-off Voltage | V | 4.2±0.05 | Single cell |
Discharge cut-off Voltage | V | 3.0 | Single cell |
Slow charge current | mA | 70 |
|
Standard charge current | mA | 350 |
|
Quick charge current | mA | 700 |
|
Slow discharge current | mA | 140 |
|
Standard discharge current | mA | 350 |
|
Quick discharge current | mA | 700 |
|
Weight | g | ≤17.5 | For reference only |
I.R. | mΩ | ≤85 | AC Impedance, 1000 Hz |
Lithium ion (Li-ion) Batteries Feature:
- high energy density, high capacity, light weight and high power.
- The voltage of cylindrical type is 3.7V. full charge voltage 4.2V,
Li-ion batteries are one o f the most popular types of rechargeable
battery
- For portable electronics, with one of the best energy densities, no
memory effect, and a slow loss of charge when not in use.
Application:
- Audio visual equipment
- Cellular phones
- Office automation
- Notebook PC'
- PDA's and handy terminals
- Communication devices
- Electronic instruments

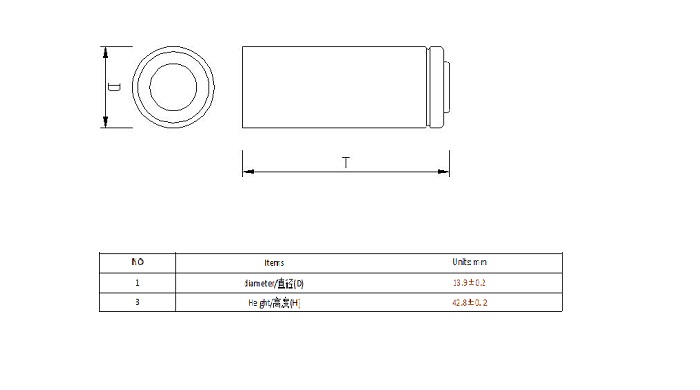

Structure Drawing For Rechargeable Lithium Ion Cylindrical Battery LIR14430 700mAh For
Lighting
Dimension: 14*43.0MM
Rechargeable High energy density Lithium Ion Cylindrical battery
LIR14430/ 700mAh

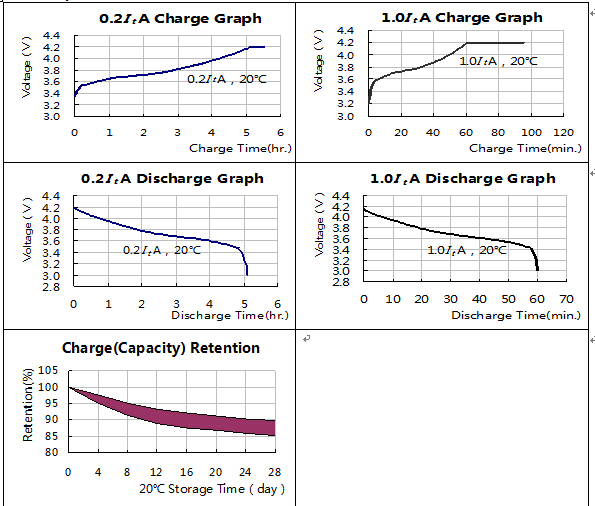

Curve Graph

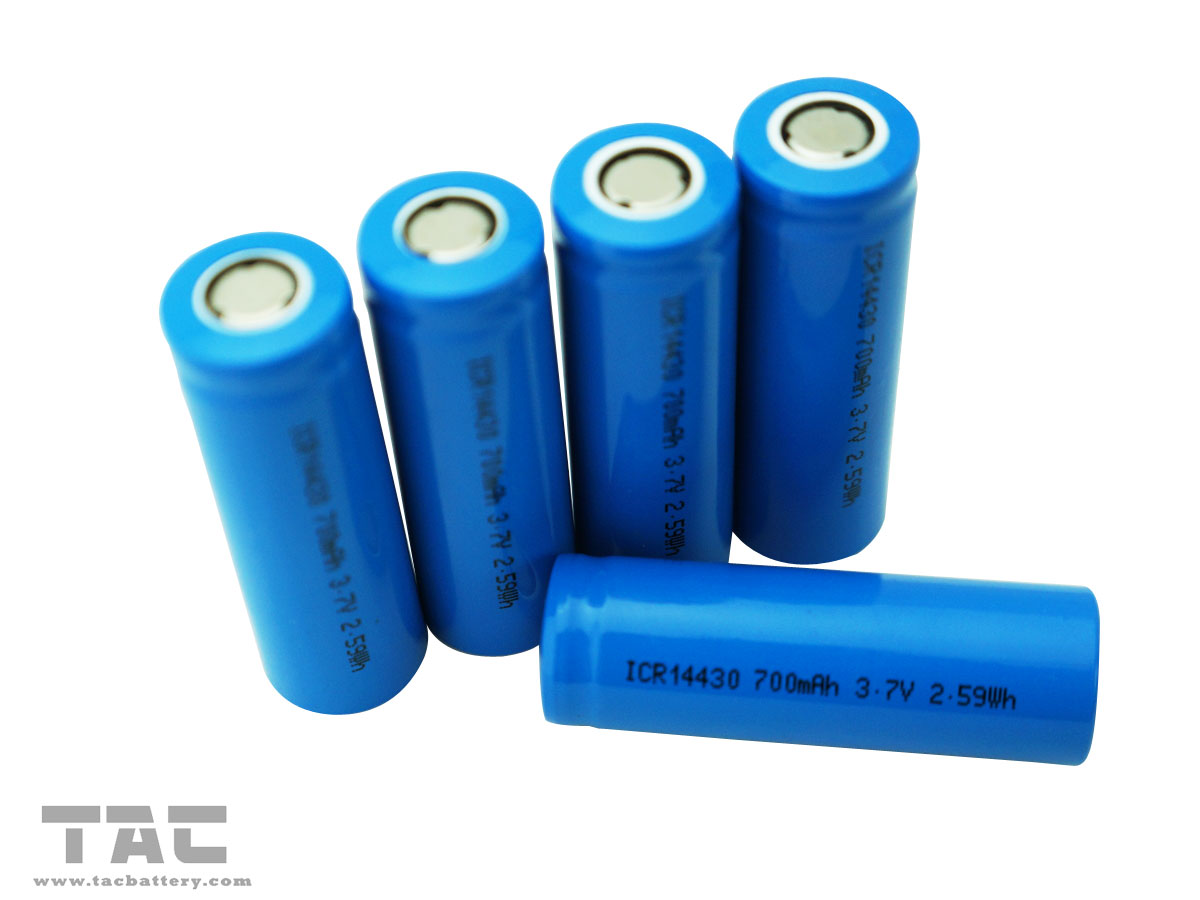

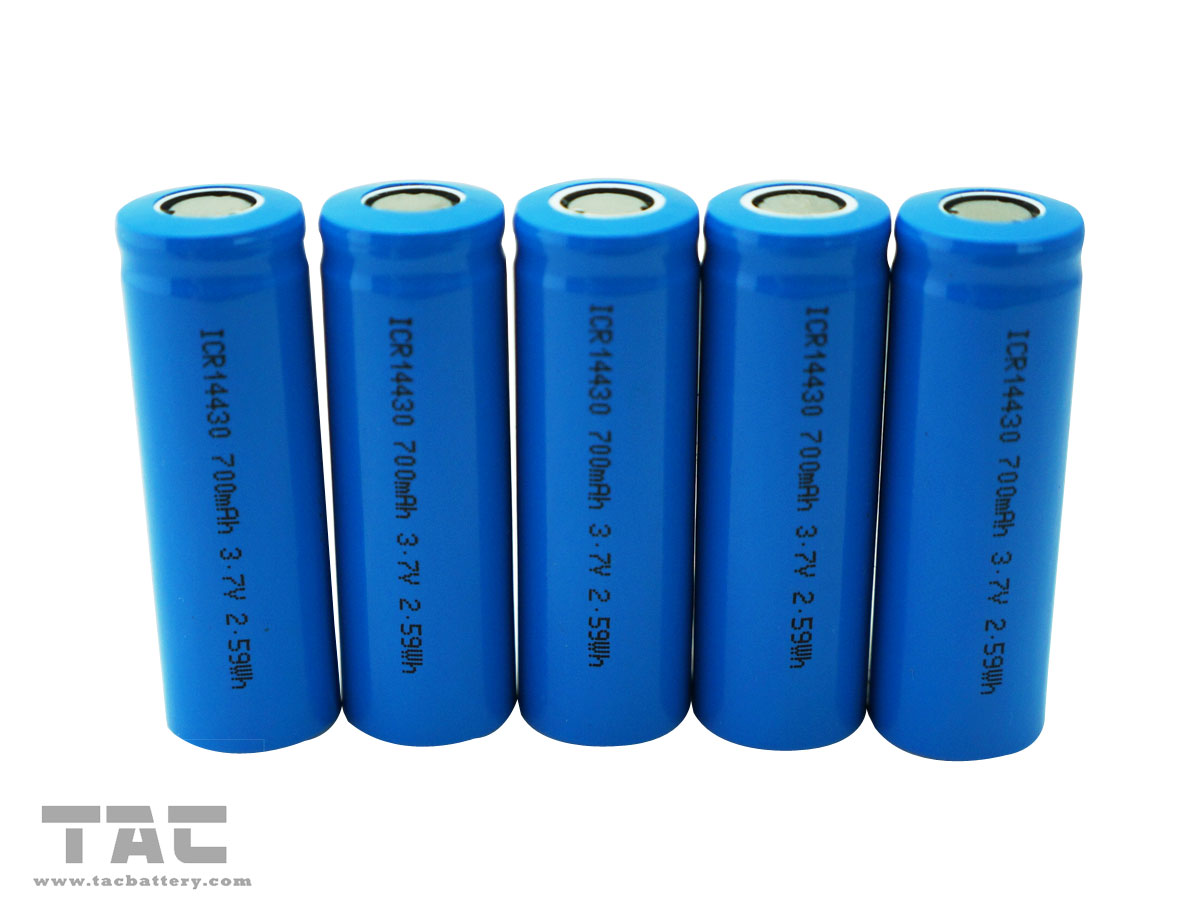

Pictures For Rechargeable High energy density Lithium Ion
Cylindrical battery LIR14430/ 700mAh
Period of Warranty
The period of warranty is one year from the date of shipment. TAC
guarantees to give a replacement in case of cells with
defects proven due to manufacturing process instead of the customer
abuse and misuse.
Storage of the Batteries
The batteries should be stored at room temperature, charged to
about 30% to 50% of capacity.
We recommend that batteries be charged about once per half a year
to prevent over discharge.
Packing Detail
battery put into inner box 50 pcs for each box , 6 box for one
standard carton
Our professional sample Team will make sample battery with your
preference before mass production
We accept custom service, like size, box shape, logo, box color and
so on.
We have QC to check every battery before shipping.
Similar Battery Model List
Other The Chemical Reaction
Because batteries utilize a chemical reaction, battery performance
will deteriorate over time even if stored for a long period of time
without being used. In addition, if the various usage conditions
such as charge, discharge, ambient temperature, etc. are not
maintained within the specified ranges the life expectancy of the
battery may be shortened or the device in which the battery is used
may be damaged by electrolyte leakage. If the batteries cannot
maintain a charge for long periods of time, even when they are
charged correctly, this may indicate it is time to change the
battery.
