7.2V 250H Nickel Metal Hydride Rechargeable Battery of 280mAh

1. Nominal Voltage is 7.2V and the rated capacity is 280mAh
2. The max dimension: D:25.2mm±0.3mm, H:46.6mm±1mm

Pictures:

1. CELL AND TYPE
   1. Cell : Sealed Ni-MH Button Cell
   2. Type : Button type

1. RATINGS
   1. Nominal voltage : 7.2V
   2. Nominal capacity : 280mAh
   3. Typical weight : 70g
   4. Standard charge : 28mA×14hours
   5. Rapid charge : 56mA×6hours

Trickle current : 8.4mA

1. Discharge cut-off voltage: 6.0V
2. Temperature range for operation (Humidity: Max.85%)

Standard charge 0 ~ +45℃

Rapid charge +10 ~ +45℃

Trickle charge 0 ~ +45℃

Discharge -10 ~ +45℃

3.8 Temperature range for storage (Humidity: Max.85%)

Within 2 years -20 ~ +35℃

Within 6 months -20 ~ +45℃

Within a month -20 ~ +45℃

Within a week -20 ~ +55℃

1. ASSEMBLY & DIMENSIONS

Per attached drawing

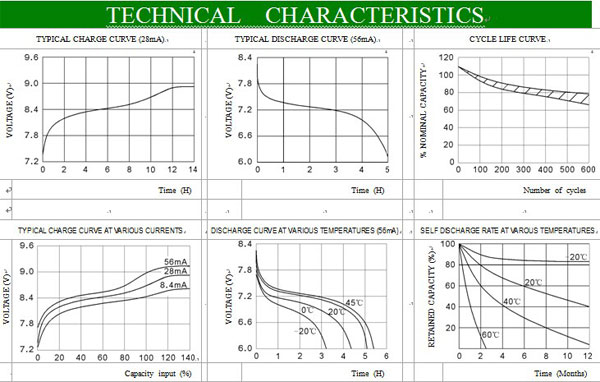

1. PERFORMANCE
   1. TEST CONDITIONS

The test is carried out with new batteries (within a month after delivery)

ambient conditions

Temperature: +25 ± 5℃

Humidity: 60 ± 20%

Note 1

Standard charge : 28mA×14hours

Standard discharge : 56mA to 6.0V

1. TEST METHOD & PERFORMANCE
