Name: 72V 30AH Lithium Ion Battery Pack With LCD Display RS485 For Electric Motorcycle Tricycle
Brand: Sunland
Price: 1 USD

Add to Cart

72V 30AH Lithium Ion Battery Pack With LCD Display RS485 For Electric Motorcycle Tricycle

Feature:

1. Environmentally friendly.

2. Long cycle life more than 2000 times.

3. Convenient, no need to refuel or change oil frequently.

4. Long endurance.

72V 30AH Lithium Ion Battery Pack With LCD Display RS485 For Electric Motorcycle Tricycle

Parameter:

No.	Item	General Parameter	Remark
1	Rated Capacity	30Ah	Standard discharge 0.2C after standard charge 0.2C
2	Minimum Capacity	28.5Ah	Standard discharge 0.2C after standard charge 0.2C
3	Nominal Voltage	73.6V
4	Life Expectation	Higher than 80% of the Initial Capacity of the battery	1)Charge:CC@0.2C to 83.95V, then CV till current to 0.02C 2)Rest: 30min. 3)Discharge: 0.2C to 57.5V Temperature:20±5℃ Carry out 2000cycles
5	Discharge cut-off voltage	2.5V/Cell(≥57.5V)
6	Charge cut-off voltage	3.65V/Cell(≤83.95V)
7	Cell and assembly method	EVE-C33-15.0Ah
8	Housing material

No.	Item	General Parameter	Remark
9	Standard charge	0.2C constant current (CC) charge to 83.95Vthen constant voltage (CV) 83.95V charge till charge current decline to ≤0.05C	Charge time : Approx 7h
10	Standard discharge	Constant current 0.2C,Cut-off voltage 57.5V
11	Maximum Charge Current	25A@20℃
12	Maximum Continuous Discharge Current	30A@20℃ 75A＜15min@20℃	90A＜10S
13	Operation Temperature Range	Charge: 0～45℃	60±25%R.H. 23 ± 5°C recommended
		Discharge: -20～60℃(cell surface temperature≤80℃)
14	Storage Temperature Range	Less than 1 year : 0～25℃(SOC≥50%)	60±25%R.H. at the shipment state
		Less than 3 months:-5～35℃(SOC≥50%)
15	Approx. Weight	19Kg
16	Internal resistance	50mΩ	1KHz,AC
17	Dimension	LWH=360230160mm ±2mm

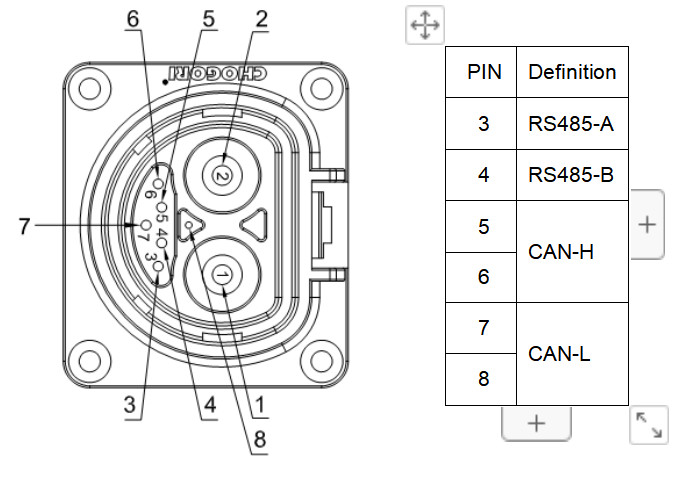

18	Terminals	CHOGORI Banga100 series 2+6 male socket 180℃
19	Communication	LCD/CAN/RS485

72V 30AH Lithium Ion Battery Pack With LCD Display RS485 For Electric Motorcycle Tricycle

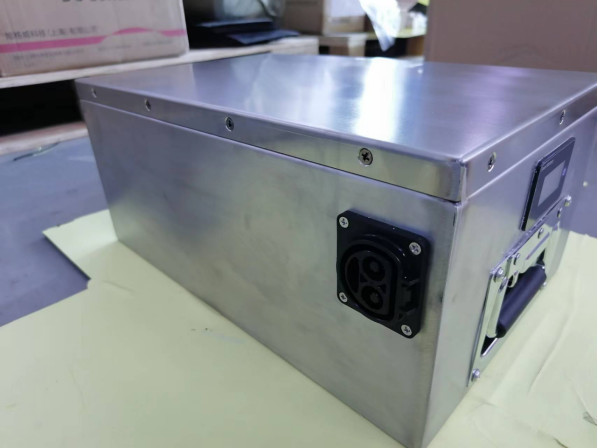

Picture:

72V 30AH Lithium Ion Battery Pack With LCD Display RS485 For Electric Motorcycle Tricycle

Application:

Appliction for various electric motorcycles and tricycle.African, Southeast Asian, South American area!
