    ICR18650 2250mAh 3.7V Lithium Ion Cylindrical Battery For Pasture Coverage Meter Measurement Tool

    Ask Lasest Price
    Brand Name : Sunland
    Model Number : ICR18650
    Certification : ROHS,REACH,UL,UN38.3,MSDS
    Price : US$1.4
    Payment Terms : T/T, Western Union
    Supply Ability : 100000PCS/week
    Delivery Time : 14 days
    • Product Details
    • Company Profile

    ICR18650 2250mAh 3.7V Lithium Ion Cylindrical Battery For Pasture Coverage Meter Measurement Tool

    ICR18650 2250mAh 3.7V Lithium Ion Cylindrical Battery For Pasture Coverage Meter Measurement Tool


    Feature:


    1. Main application for pasture coverage meter measurement tool

    2. PCB on the top,keep the diameter can not exceed 19.5mm

    3. 10K NTC


    ICR18650 2250mAh 3.7V Lithium Ion Cylindrical Battery For Pasture Coverage Meter Measurement Tool


    Specification:


    No.ItemsSpecifications

    Remark

    1

    Capacity for assembled cell discharging by 0.2C

    ≥2150mAh

    Standard discharging method

    2

    Maximum charge current

    2A0~45℃
    3

    Maximum discharge current

    2A

    -20~60℃


    4

    Battery Voltage

    3.6-3.9V

    Delivery Voltage, Within 10 days from Factory

    5

    Standard charge condition

    Charge with 0.2C constant current and 4.2V constant voltage, charge to 4.2V,continue charging till current decline to ≤0.01C

    Charge voltage: 4.2V±0.03V

    Charge current:0.2C

    6

    Standard discharging method

    0.2C constant current discharge to 2.3V,
    7

    Internal Impedance

    Assemblage Impedance

    ≤180mΩ

    Measure the Red and black wire of the connector after assembling.

    8

    Battery pack dimension

    D:19.5mm*H69.5mm
    9CaseBlue PVC

    ICR18650 2250mAh 3.7V Lithium Ion Cylindrical Battery For Pasture Coverage Meter Measurement Tool

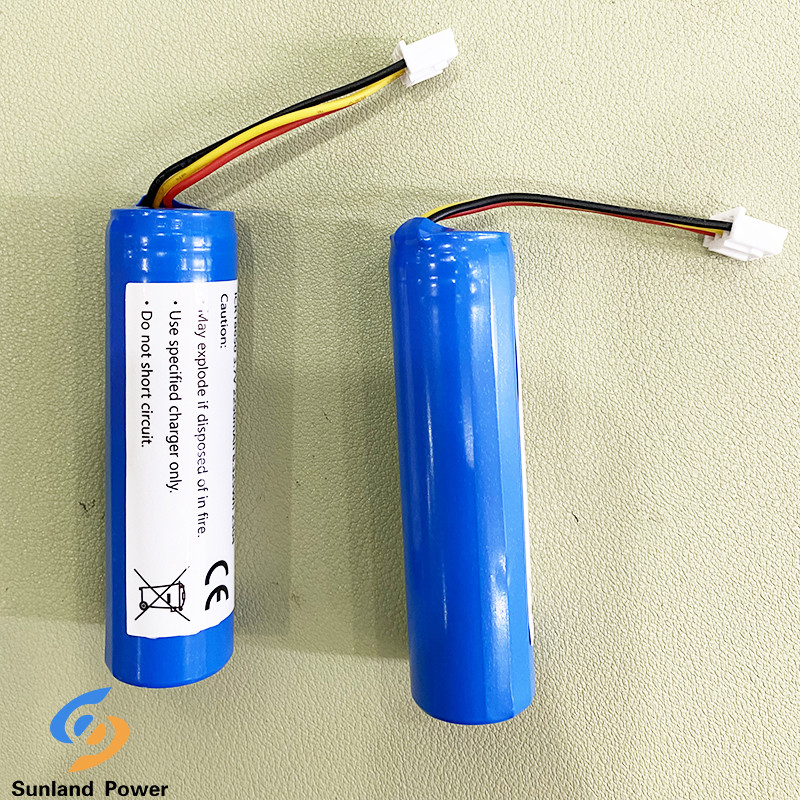

    Picture:

    ICR18650 2250mAh 3.7V Lithium Ion Cylindrical Battery For Pasture Coverage Meter Measurement ToolICR18650 2250mAh 3.7V Lithium Ion Cylindrical Battery For Pasture Coverage Meter Measurement ToolICR18650 2250mAh 3.7V Lithium Ion Cylindrical Battery For Pasture Coverage Meter Measurement ToolICR18650 2250mAh 3.7V Lithium Ion Cylindrical Battery For Pasture Coverage Meter Measurement Tool


    NOPart nameQuantityUnitRemark
    1Cell1eaICR18650
    2PCM1EaP-1YL1708LAS
    3Wire2EaUL1007/26AWG,red,yellow,black
    4PVC1Blue PVC
    5Connector/1pcsXH-3P
    6Label1pcs

    ICR18650 2250mAh 3.7V Lithium Ion Cylindrical Battery For Pasture Coverage Meter Measurement Tool


    Cycle Life

    Charging and discharging battery as blew conditions:

    0.5C standard charge to 4.2V end-off

    0.5Cstandard discharge to 3.0V cut-off


    Continuous charge and discharge for 500 cycles ,the capacity will be measure after the 500th cycle
