Speacker lithium battery ICR18650 6S1P 22.2V 2.6AH Rechargeable Lithium Ion Battery Pack

Product Categories

Guang Zhou Sunland New Energy Technology Co., Ltd.

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Name: Speacker lithium battery ICR18650 6S1P 222V 26AH Rechargeable Lithium Ion Battery Pack
Brand: Sunland
Price: 1 USD

Add to Cart

Specification:

No.	Item	General Parameter	Remark
1	Rated Capacity	2.6Ah	Standard discharge(0.2C)after standard charge(0.2C)
2	Minimal Rated Capacity	2.5Ah	Standard discharge(0.2C)after standard charge(0.2C)
3	Nominal Voltage	22.2V
4	Cycle Life	Higher than 80% of the Initial Capacity of the Cells	◆Charge: CC@0.2C to 25.2V, then CV till current to 0.02C ◆Rest: 30min. ◆Discharge: 0.2C to 18.0V ◆Temperature:20±5℃ ◆Carry out 500cycles
5	Discharge cut-off voltage	18.0V	18.0V(recommended)
6	Charging cut-off voltage	25.2V(充电保护电压)	25.2V(recommended)
7	Cell and assembly method	ICR18650-2600mAh	6S1P
8	Packing material	PVC shrink

No.	Item	General Parameter	Remark
9	Standard charge	0.2C constant current(CC) charge to 25.2V,then constant voltage (CC)25.2V charge till charge current decline to ≤0.02C	Charge time : Approx 6h
10	Standard discharge	Constant current 0.2C Cut-off voltage 18.0V
11	Maximum Charge Current	2A
12	Maximum Discharge Current	2A
13	Operation Temperature Range	Charge: 0~45℃	60±25%R.H.
13	Operation Temperature Range	Discharge: -10~50℃	60±25%R.H.
14	Storage Temperature Range	Less than 1 year : 0~25℃	60±25%R.H. at the shipment state
14	Storage Temperature Range	Less than 3 months:-5~35℃	60±25%R.H. at the shipment state
15	Weight	Approx: 350g
16	Pack Dimension	High:71.5mm	Max Size
		Width: 58.0mm
		Thickness: 47. 5mm

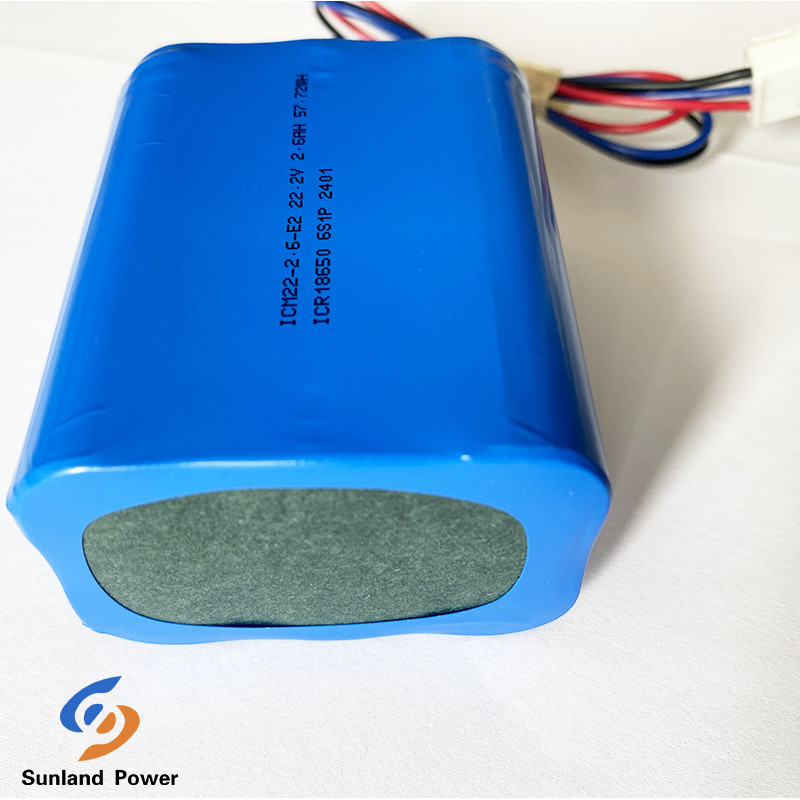

Picture:

Speacker lithium battery ICR18650 6S1P 22.2V 2.6AH Rechargeable Lithium Ion Battery Pack
