3.2V AA IFR14500 Lithium Iron Phosphate Battery 600mAh With Protection Circuit Application For Smart Lock

Ask Lasest Price
Brand Name :	Sunland
Model Number :	IFR14500 AA
Certification :	MSDS,UN38.3,ROHS,REACH,UL1642
Price :	USD1.27/PCS
Payment Terms :	L/C, T/T, Western Union
Supply Ability :	10000PCS/week
Delivery Time :	35 days

Add to Cart

Product Details
Company Profile

3.2V AA IFR14500 Lithium Iron Phosphate Battery 600mAh With Protection Circuit Application For Smart Lock

3.2V AA IFR14500 Lithium Iron Phosphate Battery 600mAh With Protection Circuit Application For Smart Lock

Feature:

1. Long cycle time,more than 2500 times

2. Application for household product,IOT product.

3. The battery can work in high temperaure 75℃.

3.2V AA IFR14500 Lithium Iron Phosphate Battery 600mAh With Protection Circuit Application For Smart Lock

Specification:

Item(s)		Specification	Remark
Nominal voltage (V)		3.2
Nominal Capacity (mAh)		600	Standard charging/discharge method
Minimum capacity (mAh)		540	Standard charging/discharge method
Charging	Charging voltage Max.(V)	3.65	Charging modeCC&CV
	Standard Chargin current(mA)	120	0.2C
	Continue charging current Max. (mA)	600
Discharging	End of discharging voltage Min.(V)	2.5
	Standard Chargin current(mA)	120	0.2C
	Continue discharging current (mA)	600
Operation temperature	Standard Charging	0℃~60℃
Operation temperature	Standard Discharging	-20℃~60℃
Weight (g)		25g
Internal resistance (mΩ)		<160	AC 1kHZ

3.2V AA IFR14500 Lithium Iron Phosphate Battery 600mAh With Protection Circuit Application For Smart Lock

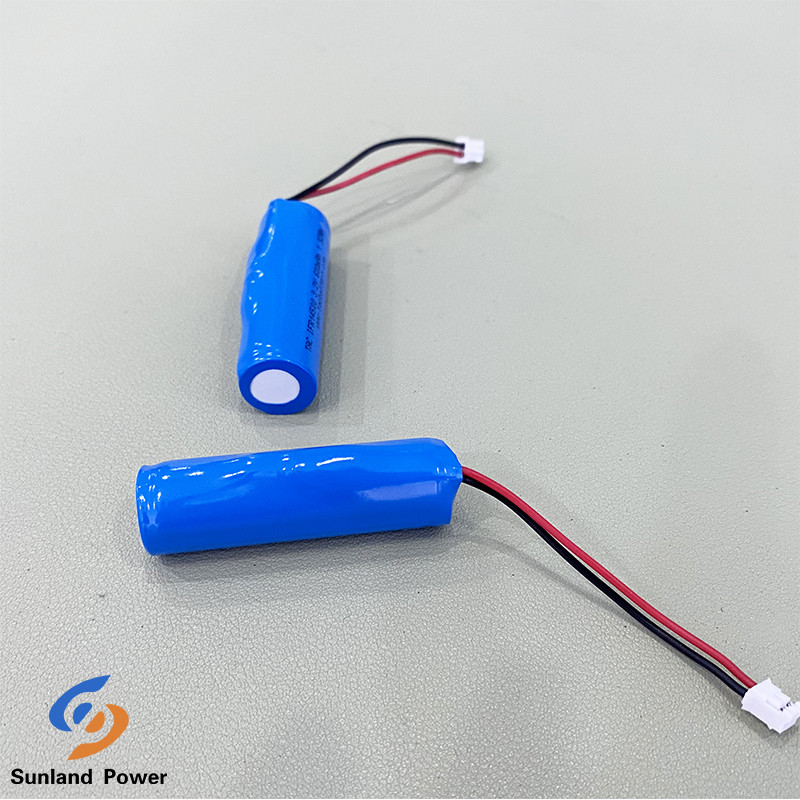

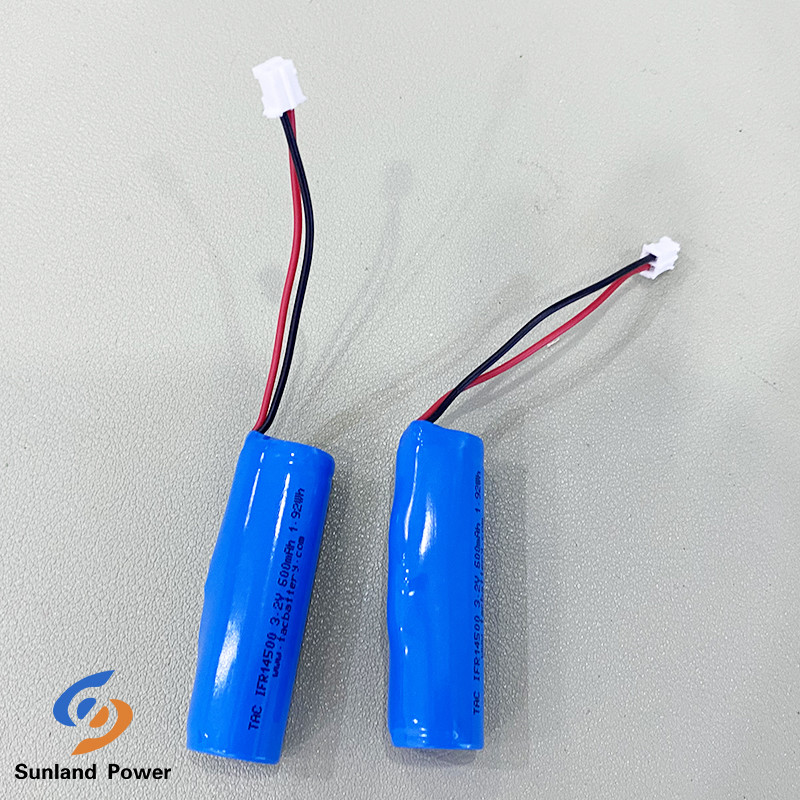

Picture:

3.2V AA IFR14500 Lithium Iron Phosphate Battery 600mAh With Protection Circuit Application For Smart Lock

Parameter of PCM

Item	Content	Criterion
Over charge Protection	Over charge detection voltage	3.65±0.025V
Over charge Protection	Release voltage for over-charging	3.45±0.025V
Over discharge protection	Over discharge detection voltage	2.5±0.05V
Over discharge protection	Release voltage for over-discharging	3.0±0.05V
Over current protection	Over current detection current	2.5～5.5A
Over current protection	Detection delay time	9～15mS
Short protection	Detection condition	Exterior short circuit
	Detection delay time	200～400uS
	Release condition	Cut short circuit
Interior resistance	Main loop electrify resistance	RSS ≤60mΩ
Static current	Consumption current (self consumption) - single cell	≤10μA
Working current	Maximum continuous charge current	2A
Working current	Maximum sustained discharge current	2A
Temperature	Operating temperature range	-40～ +85℃
Temperature	Storage temperature range	-40～ +125℃
