3.7V Rechargeable Lithium ion Battery ICR18650 1S2P with UL2054 For Lamp

Product Categories

Guang Zhou Sunland New Energy Technology Co., Ltd.

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Add to Cart

Main application for different LED light and some consumer electronics products.
single cell :lithium ion battery 18650.

Specification:

No.	Items	Specifications	Remark
1	Capacity for assembled cell discharging by 0.2C	≥5000mAh	Standard discharging method
2	Maximum charge current	4A	0~45℃
3	Maximum discharge current	4A	-20~60℃
4	Battery Voltage	3.8-3.9V	Delivery Voltage, Within 10 days from Factory
5	Standard charge condition	Charge with 0.2C constant current and 4.2V constant voltage, charge to 4.2V,continue charging till current decline to ≤0.01C	Charge voltage: 4.2V±0.03V Charge current:0.2C
6	Standard discharging method	0.2C constant current discharge to 3.0V,
7	Internal Impedance	Assemblage Impedance	Measure the Red and black wire of the connector after assembling.
8	Battery pack dimension	T:20.5mmW:38mmLH68mm
9	Case	PVC

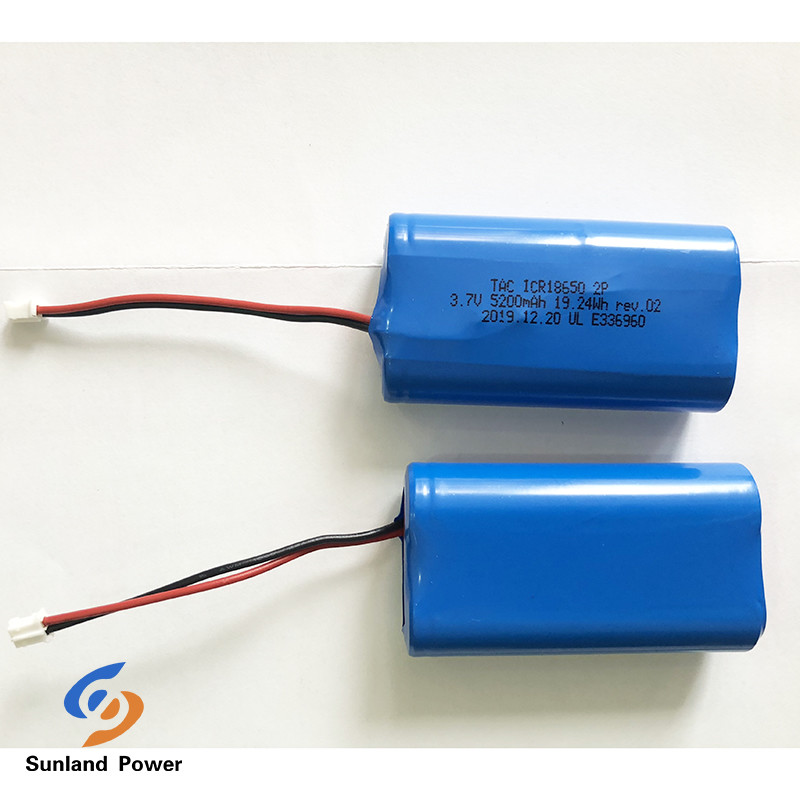

Picture:

3.7V Rechargeable Lithium ion Battery ICR18650 1S2P with UL2054 For Lamp

PCM Parameter:

IC	DPDW01A	parameter value
Item name		min	type	max	unit
Overcharge protection voltage		4.230	4.280	4.330	V
Overcharge protection recovery voltage		4.030	4.080	4.130	V
Over discharge protection voltage		2.300	2.400	2.500	V
Over discharge protection recovery voltage		2.900	3.000	3.100	V
Discharge over current detection voltage		0.120	0.150	0.180	V
Discharge over current protection current		4.0	-	8.0	A
Overcharge detection delay time		-	80	200	ms
Over discharge detection delay time		-	40	120	ms
Over current detection delay time		5.0	10	20	ms
Short circuit protection delay time		-	50	320	μs
Quiescent current under normal conditions		-	4.0	6.0	μA
Quiescent current in over-discharge state VDD=2.0V		-	-	0.1	μA
Conduction internal resistance		-	-	65	mΩ
Input voltage(B+与B-)		VSS-0.3	-	VSS+12	V
					A
Max discharge current		4	5	6	A
working temperature		-40	-	85	ºC
Store temperature		-55	-	125	ºC
0V charging function			无/NO

We can product various different voltage and capacity battery pack via 18650 cell
and OEM big capacity enery storage system with your requrie
