IOT 11.1Volt Lithium Ion Cylindrical Battery ICR26650 15AH

    Buy cheap IOT 11.1Volt Lithium Ion Cylindrical Battery ICR26650 15AH from wholesalers

    Buy cheap IOT 11.1Volt Lithium Ion Cylindrical Battery ICR26650 15AH from wholesalers
    • Buy cheap IOT 11.1Volt Lithium Ion Cylindrical Battery ICR26650 15AH from wholesalers
    • Buy cheap IOT 11.1Volt Lithium Ion Cylindrical Battery ICR26650 15AH from wholesalers

    IOT 11.1Volt Lithium Ion Cylindrical Battery ICR26650 15AH

    Ask Lasest Price
    Brand Name : TAC / OEM
    Model Number : ICR26650 11.1V 15AH
    Certification : ROHS MSDS
    Price : usd 50-80
    Payment Terms : 100% prepaid before shipping out
    Supply Ability : 50000 per week
    Delivery Time : 7 days for single cell 15-20 days for battery pack
    • Product Details
    • Company Profile

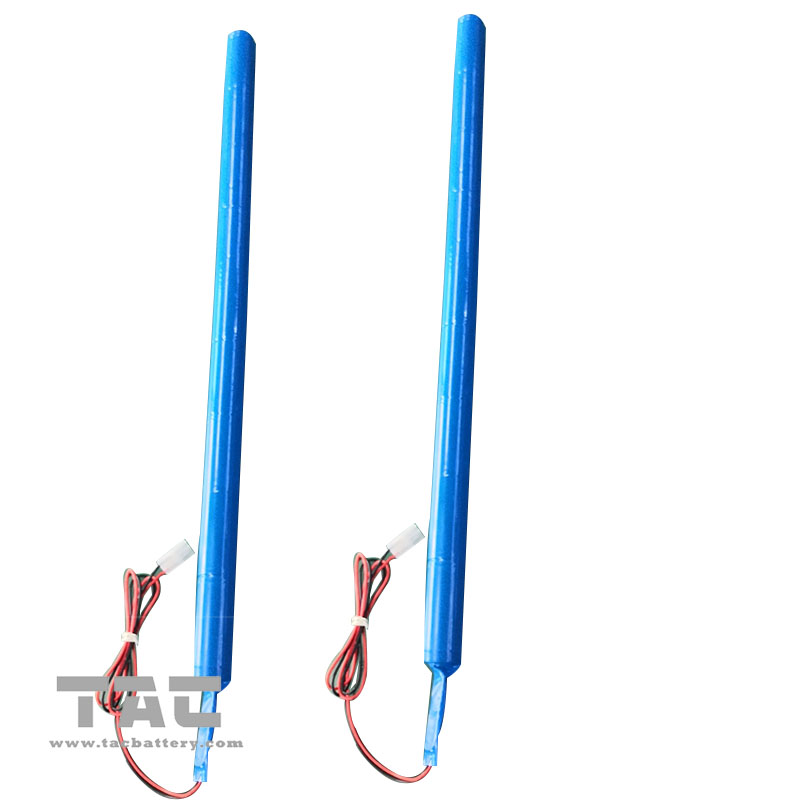

    IOT 11.1Volt Lithium Ion Cylindrical Battery ICR26650 15AH

    IOT 11.1V Lithium ion Cylindrical battery ICR26650 15AH

    Battery Pack Specifications


    No.ItemsSpecifications

    Remark



    1

    Capacity for assembled cell

    discharging by 0.2C



    ≥14400mAh

    Standard discharging method



    2


    Battery Voltage



    11.1V~11.7V


    Delivery voltage, Within 10 days from Factory



    3


    Standard charge condition


    Charge with 0.2C constant current and 12.6Vconstant voltage, charge to 12.6V,continue charging till current declineto ≤0.01C


    Charge voltage:12.6V±0.02V

    Charge current:0.2C


    4

    Overcharging protection voltage



    12.39V-12.825V


    5

    Maximum charge current



    4A


    For continuous charging mod



    6

    Maximum discharge current



    4A


    For continuous discharge mod



    7

    Standard discharging method



    0.2C constant current discharge to 9.0V,

    0.2C

    8

    Internal Impedance



    Assemblage Impedance


    Measure two sides of the drawing line after assembling.



    NO.ItemsUnits:mm
    1Length/without PCBL1Max602mm
    2Length//withPCBL2Max662mm
    3Diameter/WMax30mm
    4Wire/L3

    750±3mm


    BOM of Battery Pack

    NO.Part nameQuantityUnit/RemarkHSF
    1Cell/9eaICR26650 5AHROHS
    2Connector/1PCS

    ROHS


    3Solder/0.2gLead FreeROHS
    4Wire/2PCS18AWGROHS
    5PCM/1PCSSH0405B034X2-LX3S4A

    ROHS



    Warranty

    The period of warranty is One year from the date of shipment. TAC guarantees to give a replacement in case of cells with

    defects proven due to manufacturing process instead of the customer abuse and misuse.


    Storage of the Batteries

    The batteries should be stored at room temperature, charged to about 30% to 50% of capacity.

    We recommend that batteries be charged about once per half a year to prevent over discharge.

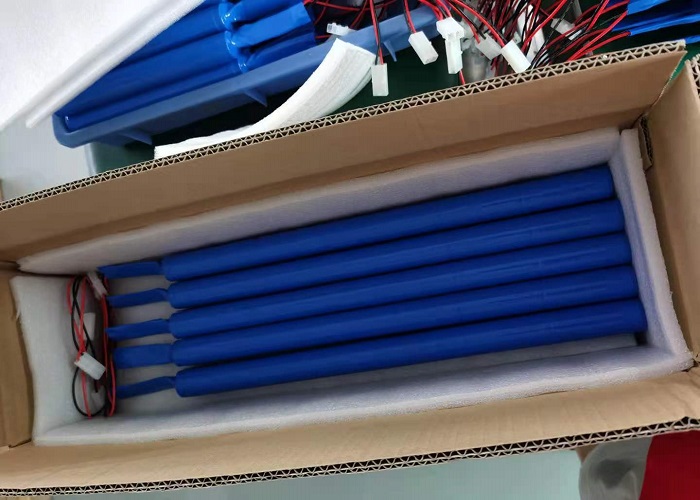

    Packing Detail

    5 battery packs for one cargon , the battery pack was protect by strong foam one by one
