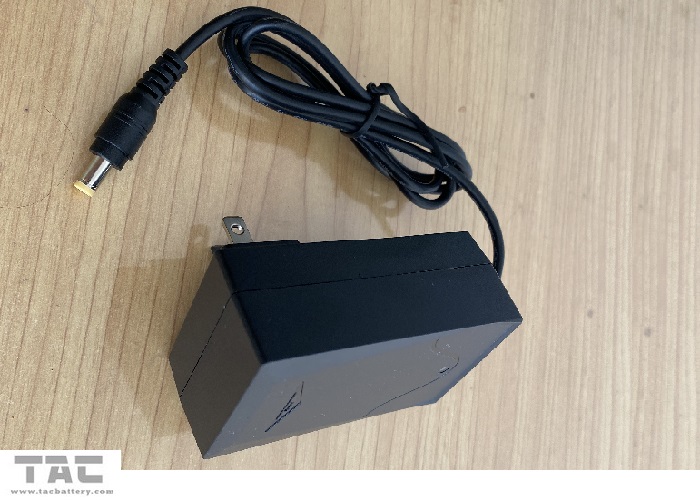

12.6V Portabel Charger 2A

Input Characteristics

2.1 (Input Voltage):

(Nominal Voltage):100-240Vac

Variation Range):90-264Vac

2.2 (Input Frequency):

(Nominal Frequency):50-60Hz

(Variation Frequency):47-63Hz

2.3 (Input Current):

0.5Arms max At any input voltage and rated, DC output rated load.

2.4 (Inrush Current):

30Amps Max. Cold start at 240Vac input, with rated load and 25℃ambient.

2.5 (Ac Leakage Current):

0.25mA Max At 240Vac input.

Output Characteristics.

Rated Output

Combined Load/Line Regulation

Temperature and humidity

Operating Temperature:

(Full load Normal operation).

0℃to40℃,Full load Normal operation.

Storage Temperature

-20℃to85℃,(With package).

Relative Humidity:

5%(0℃)～90%(40℃),

5%(0℃)～90%(40℃)RH,72Hrs,Full load Normal operating.

Vibration:

Operating: IEC 721-3-3 3M3

5～9Hz,A=1.5mm (9～200Hz,Acceleration 5m/s²) 2,(Transportation): IEC 721-3-2 2M2

5-9Hz,A=3.5mm

9～200Hz,Acceleration=5m/S²

200～500HZ Acceleration=15m/S²

(Axes,10 cycles per axis).

No permanent damage may occur during testing.

The product has to restors its original situation after power off/on.)

Dropping)(Packed:

1 corner,3 edges, and 6 surfaces

76cm Height:76cm

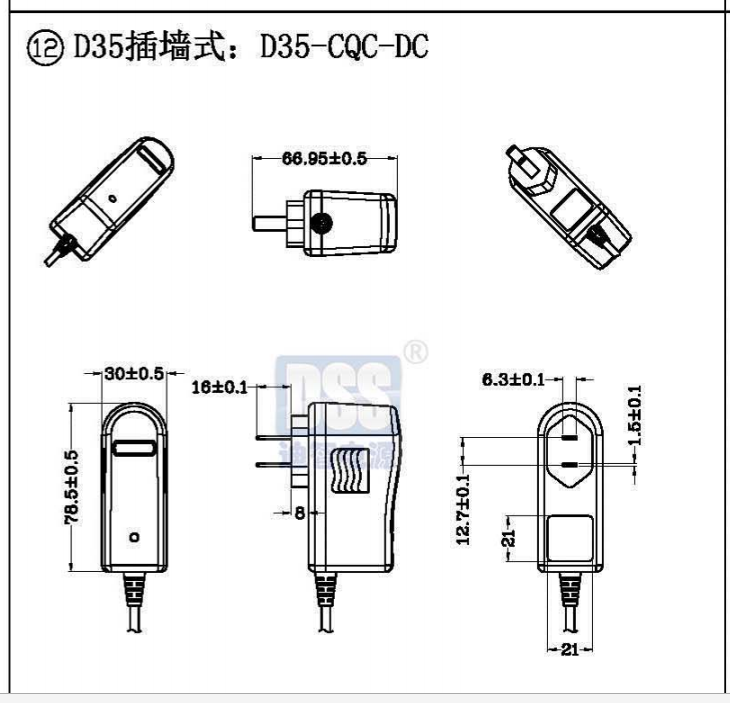

MECHANICAL REQUIREMENT

Enclosure:

The power supply size: L78x W30x H42mm
