Residential Battery Energy Storage System ESS Battery Cabinet

Product Categories

Guang Zhou Sunland New Energy Technology Co., Ltd.

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Add to Cart

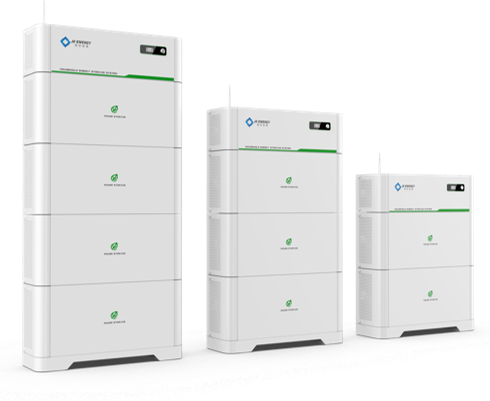

Residential ESS Battery Cabinet

Model	Mint-JKE5	Mint-JKE10	Mint-JKE15	Mint-JKE20
Battery Type	LiFePO4
Battery Cabinet Configuration	1	2	3	4
Nominal Voltage	102.4V	204.8V	307.2V	409.6V
Nominal Capacity	50Ah
Nominal Total Energy	5.12kWh	10.24kWh	15.36kWh	20.48kWh
Electrical Parameters
Voltage Range	83.2~115.2V	166.4~230.4V	249.6~345.6V	332.8~460.8V
Standard Charging Current	25A@continue
Max.Charging Current	50A@continue
Standard Discharge Current	25A@continue
Max.Discharging Current	50A@continue
Mechanical Parameters
Net Weight	73.0±2.0kg	126.0±2.0kg	180.0±2.0kg	233.0±2.0kg
	(758.0±2.0)	(758.0±2.0)	(758.0±2.0)	(758.0±2.0)
Dimension(WDH)	(228.0±2.0) (648.0±2.0)	(228.0±2.0) (976.0±2.0)	(228.0±2.0) (1304.0±2.0)	(228.0±2.0) (1632.0±2.0)
	mm	mm	mm	mm
Ingress Protection	IP65
Cooling	Natural Cooling
Operation Condition
Environment Temperature	Charge:0℃~55℃/Discharge:-20℃~60℃/Storage:-10℃~45℃
Operation Humidity	5~95%,RH
Altitude	＜2000m
Mounting Type	Floor-mounted
Design Life	＞10 years
