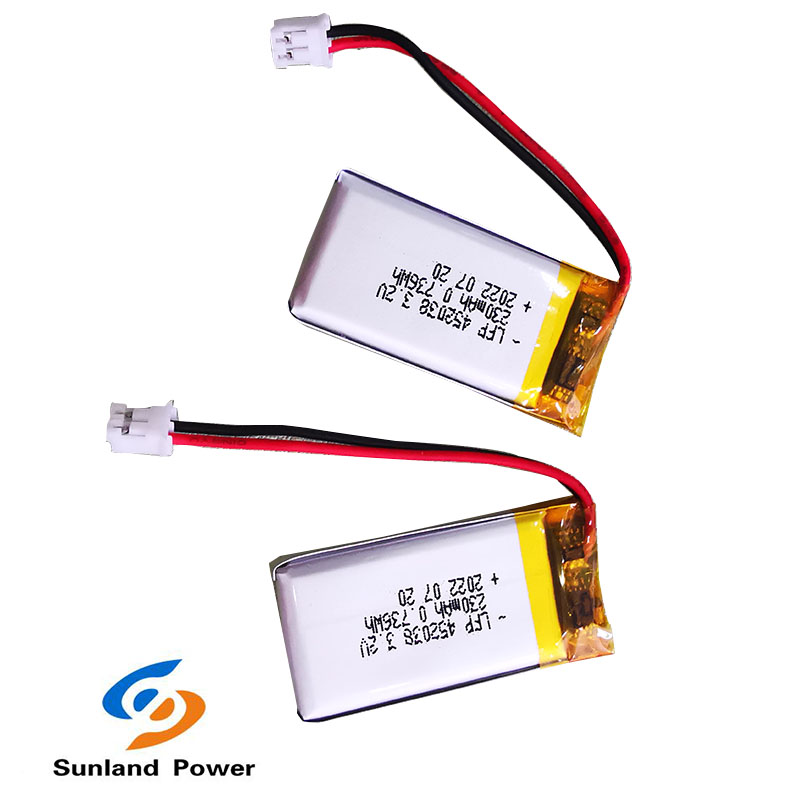

LP0452038 3.2V 230mAh Polymer Lithium Ion Batteries LiFePo4 Rechargeble

    Buy cheap LP0452038 3.2V 230mAh Polymer Lithium Ion Batteries LiFePo4 Rechargeble from wholesalers

    Buy cheap LP0452038 3.2V 230mAh Polymer Lithium Ion Batteries LiFePo4 Rechargeble from wholesalers
    • Buy cheap LP0452038 3.2V 230mAh Polymer Lithium Ion Batteries LiFePo4 Rechargeble from wholesalers
    • Buy cheap LP0452038 3.2V 230mAh Polymer Lithium Ion Batteries LiFePo4 Rechargeble from wholesalers
    • Buy cheap LP0452038 3.2V 230mAh Polymer Lithium Ion Batteries LiFePo4 Rechargeble from wholesalers
    • Buy cheap LP0452038 3.2V 230mAh Polymer Lithium Ion Batteries LiFePo4 Rechargeble from wholesalers
    • Buy cheap LP0452038 3.2V 230mAh Polymer Lithium Ion Batteries LiFePo4 Rechargeble from wholesalers

    LP0452038 3.2V 230mAh Polymer Lithium Ion Batteries LiFePo4 Rechargeble

    Ask Lasest Price
    Brand Name : Tac
    Model Number : LP452030
    Certification : UL, Rohs
    Price : USD1.17-1.23
    Payment Terms : T/T, LC, Paypal etc.
    Supply Ability : 60K/Day
    Delivery Time : 14days after order
    • Product Details
    • Company Profile

    LP0452038 3.2V 230mAh Polymer Lithium Ion Batteries LiFePo4 Rechargeble

    LP452038 3.2V 230mAh Polymer Lithium Ion Batteries LiFePo4 Rechargeble Battery

    LP452038 wearable battery

    1. Model Name; LP452038

    2. Battery Type :polymer lithium-ion battery

    3. Nominal Voltage 3.7V

    4. Nominal Capacity 230MAH

    5. Size :4.5mm(T)*20mm(w)*38mm(h)

    Specification For Lipo Battery Rechargeable LP452038 3.2V 230mAh Polymer Lithium For wearabl


    ItemSpecificationNote
    Rated Capacity230 mAh0.2C discharge
    Nominal Capacity250 mAh0.2C discharge
    Min. Capacity230 mAh0.2C discharge
    Cell Weight≈ 5g
    Cell Initial Impedance≤ 140mΩ3.2V AC 1KHz measured
    Normal Voltage3.2V
    Initial Voltage≥3.2V
    Limited Charge Voltage3.65VVoltage of CC charge to CV charge
    Standard Charging Method0.2C CC current charge to 3.65V, then CV charge till current declines to 0.01C
    Cut-off Voltage2.3VLoad Voltage when discharge ended
    Standard Charging Current46mA (0.2C)CC charge to 3.65 V, then CV charge till current declines to less than 0.01C
    Standard Charging Time≈6h
    Rapid Charging Current230 mA (1C)
    Rapid Charging Time≈2h
    Standard Discharging Current46mA (0.2C)CC discharge to 2.3V
    Max. Discharging Current230 mA (1C)
    Operating Temperature RangeCharging:10~ 45℃
    Operating humidity Range≤ 90%RH


    Application for Lipo Battery

    1. wearabl
    2. digital camera,
    3. the multi-purpose PDA telephones.
    4. Global localization satellite GPS,
    5. Bluetooth, portable type media products(Mp3, Mp4, DVD),
    6. notebook, tablet PC,
    7. the electronic toy,
    8. e-bike, model ship,



    Pictures For Lipo Battery Rechargeable LP042030 3.7V 200mAh Polymer Lithium For Bluetooth

    High Energy Density Rechargeable LP042030 3.7V 180mAh Polymer Lithium Ion Batteries




    Packing Method for Lipo Battery

    The battery put into specify plastical tray , normally 20pcs for one tray

    10 tray for one standard paper carton





    More Other Size for Lipo Battery

    1040653.7V3200mAh
    1050503.7V3000mAh
    1050603.7V3500mAh
    1050653.7V4000mAh
    1050803.7V5000mAh
    1050853.7V5000mAh
    1055733.7V5000mAh
    1128403.7V1300mAh
    1128433.7V1500mAh
    1139423.7V1800mAh
    1240403.7V2000mAh
    1240603.7V3600mAh
    1246783.8V5600mAh
    1361983.7V8000mAh
    1520533.7V1500mAh
    2514163.7V35mAh
    2520403.7V170mAh

    Why are you choose TAC BATTERY

    maoyt assessed 6 years supplier- TAC Battery can be trusted(if for more information ,please find at our homepage.)

    • Payment Terms:T/T ,LC ,Paypal
    • Price Terms:FOB,CIF,EXW
    • Shipping:1.by air 2.by sea 3.by express:UPS,DHL,EMS,TNT.etc with your require
    • provide more professional forward with customer's require
    • Lead Time:7-10 days after receipt of advance payment for the samples, and 25-30 days for OEM ODM order
    • 24-hour online services: FB LINKEDIN TWITTER Whatsapp
    • prompt reply: we are willing to reply asap.
    • competitive price: manufacturer price . level price with your require
    • excellent quality:advance materials,can be recharged for 500 times,with built-in PCM to protect the who circuit.
    • strict quality control: complete QC control system, test the battery with IEC standard
    • CE,ROHS,MSDS,UN38.3 approved and KC BIS with customer's require
