12AH IFR32700 1S2P 3.2V LiFePO4 Battery For Solar Powered Electric Fencing.

1. Nominal Capacity:12AH

2. Voltage:3.2V

3. Delivery voltage≥ 3.28 V

4. Battery SOC:Appr 30%

5. Max continuous charge current:2A

6. Max continuous discharge current:2A

7. Connector:JST PHR-3P

PCM information

No	Item	Condition	Specification
1	nput Voltage	input Voltage B+ to B-	-0.3～+10V
2	Overcharge	Detection voltage	3.75±0.05V
3		Release voltage	3.6±0.1V
4		Detection delay time	0.08~0.2S
5	Over discharge	Detection voltage	2.1±0.1V
6		Release voltage	2.3±0.1V
7		Detection delay time	40.00~120.00ms
8	Over discharge current	Over current	3～5A
9	Over discharge current	delay time	10.00～20.00ms
10	Short detection	Short detection delay time	50~300us
11	Short detection	Release Conditions	Cut off load
12	Charge temperature protection	Charge temperature protection	NO
13	Discharge temperature protection	Discharge temperature protection	NO
14	Normal current consumption	Normal current consumption of PCM	Max 8.00uA
15	0V charger	allowed 0V change	YES
16	Suggest working conditions	max continuous charge/discharge current	2A
17	Suggest working conditions	suggest working temperature	-20℃～+60℃
18	IR resistance	IR of PCM	≤70.00 mΩ
19	PTC	Continuous current	3.0A
	PTC		6.0A
20	The size of final PCM	The length of final PCM	36±0.15mm
21		The width of final PCM	5.1±0.1mm
22		The thickness of final PCM	MAX:2.2mm
21	Appearance	Nothing part deflection The status of solder is all right PCM will not crook Settle for TDT Module appearance standard
22	Reliability test	1) ESD 4KV 8KV / ESD test :contact 4KV Air 8KV

12AH IFR32700 1S2P 3.2V LiFePO4 Battery For Solar Powered Electric Fencing.

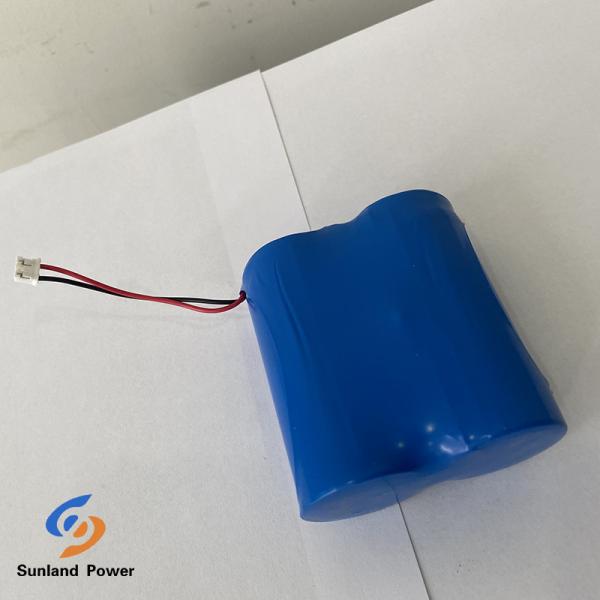

Product picture:

No	Working temperature	Charging Spec	Discharging Spec
1	-20oC to 0oC	Charge current limited to 0.1C(1.2A) or	Suggest discharge current limited to 0.2C or
2	0oC to 45oC	Charge current within spec	Discharge current within spec
3	45oC to 70oC	Charge current limited to 0.1C(1.2A) or below Cut off voltage 3.60Vor below	Suggest discharge current limited to 0.2C or below
