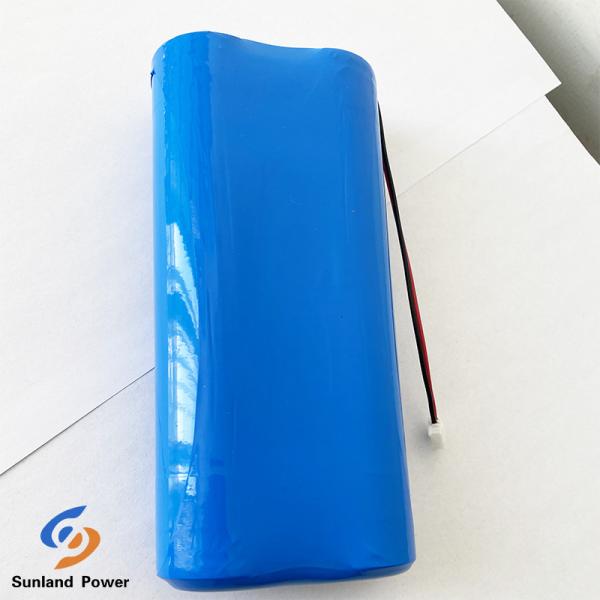

    IFR32140 2S1P 6.4V 15AH 3.2V LiFePO4 Battery Pack For Electric Fencing Solar Powered

    Ask Lasest Price
    Brand Name : ODM OR OEM
    Model Number : IFM32140-6-15
    Certification : MSDS REACH ROHS UN38.3
    Price : USD19
    Payment Terms : T/T, L/C, Western Union
    Supply Ability : 10000PCS per month
    Delivery Time : 30 days
    • Product Details
    • Company Profile

    IFR32140 2S1P 6.4V 15AH 3.2V LiFePO4 Battery Pack For Electric Fencing Solar Powered

    IFR32140 2S1P 6.4V 15AH Battery Pack 3.2V LiFePO4 Battery For Electric Fencing With Solar Powered


    Description:


    1. MODEL :IFM32140-6-15

    2. Part No: P-2022-0051

    3. IFR32700 2S2P 6.4V12AH 76.8Wh

    4. Nominal Capacity:15AH

    5. Nominal Voltage:12.8V

    6. Weight:610g

    7. Size:35mm*67.5mm*147mm

    8. Max continuous charge current:2A

    9. Max continuous discharge current:2A



    No.


    Items


    Specifications

    Remark


    1


    Capacity for assembled cell discharging by 0.2C


    ≥14.5Ah


    Standard discharging method


    2

    Battery Voltage

    ≥6.56V

    Base on MOQ 10K Within 10 days from Factory

    Battery SOC

    Appr 30%

    3


    Standard charge condition

    Charge with 2A constant current and 7.3V constant voltage, charge to 7.3V,continue charging till current decline to ≤0.01C


    Charge voltage: 7.3V±0.03V Charge current:2A

    4

    Max continuous charge current


    2A


    5


    Standard discharging method


    2A constant current discharge to 5V,


    6

    Max continuous discharge current


    2A


    7


    Internal Impedance


    Assemblage Impedance


    Measure the Red and black wire of the connector after assembling.

    8

    Charge upper limit temperature

    0-45℃

    Charging at low temperature, capacity and cycle life will reduce.

    9

    Discharge upper limit temperature

    -20-60℃
    10ConnectorJST PHR-4P

    The original JST connectors (PHR-4P)

    11WireUL1007 24AWG

    Outside diameter Max :1.5mm

    12Date codeCell date code and battery date code not beyond 3month

    IFR32140 2S1P 6.4V 15AH Battery Pack 3.2V LiFePO4 Battery For Electric Fencing With Solar Powered
