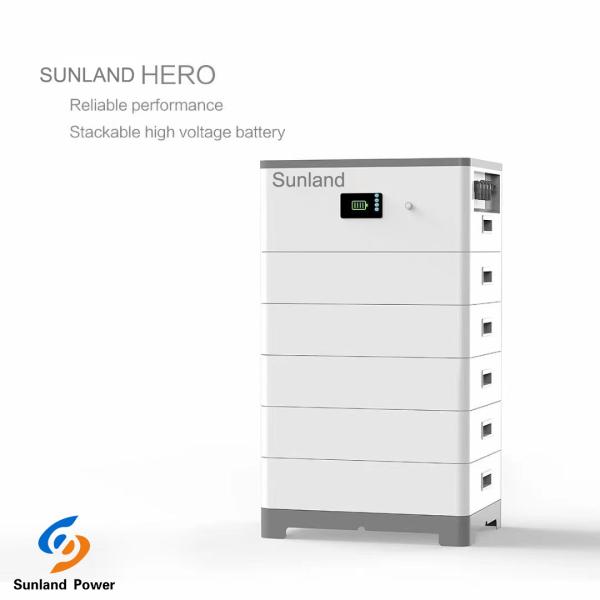

    153.6V 409.6V Solar Energy Storage System 7.68KWH 20.48KWH For Home

    Ask Lasest Price
    Brand Name : Sunland
    Model Number : SL20
    Certification : MSDS REACH ROHS UN38.3
    Price : USD3700
    Payment Terms : T/T
    Supply Ability : 1000PCS per month
    Delivery Time : 15 days
    • Product Details
    • Company Profile

    153.6V 409.6V Solar Energy Storage System 7.68KWH 20.48KWH For Home

    Hight Voltage 153.6V To 409.6V Solar Energy Storage System 7.68KWH To 20.48KWH For Home Energy Storage System


    Parameter/Specifications/
    Module3S4S5S6S7S8S
    Total capacity50Ah
    Total energy/kWh7.6810.2412.8015.3617.9220.48

    Size (W*D*H) mm

    (without feet) (To be

    updated)


    550*380*699.5


    550*380*831.0


    550*380*962.5


    550*380*1094.0


    550*380*1225.5


    550*380*1357.0

    Weight kg

    ( To be updated)

    115.0145.0175.0205.0235.0265.0
    Nominal voltage V153.6204.8156.0307.2358.4409.6
    Output voltage range/V

    134.4~ 172.8


    179.2~ 230.4


    224.0~ 288.0


    268.8~ 345.6


    313.6~ 403.2


    358.4~ 460.8


    No./

    Items/

    Specifi cations/

    1

    *Total Capacity/ Energy

    50Ah/2.56kWh
    3*Nominal Voltage51.2V
    4

    Output Voltage Range

    44.8V~57.6V
    5

    Module Safety Certification

    /
    6

    Cell Safety Certification/

    /
    7UN Transportation Test Standard/
    8Ingress ProtectionIP55(in stacked up state)
    9DimensionsW550.0*D380.0*H142.0 mm (excluding terminals and sidepanel.
    10Altitude≤2000m
    12Weight<30kg (for reference)
    14Connection16S1P
    15InstallationStackable installation
    16Shipment Capacity<30% SOC

    17


    Storage conditions

    -30℃~45℃ One month

    .-20℃~35℃ Six months

    Humidity :5%-95%RH/: 5%-95%RH

    Within 12 month after each charge




    Hight Voltage 153.6V To 409.6V Solar Energy Storage System 7.68KWH To 20.48KWH For Home Energy Storage System



    153.6V 409.6V Solar Energy Storage System 7.68KWH 20.48KWH For Home153.6V 409.6V Solar Energy Storage System 7.68KWH 20.48KWH For Home

    Warranty period

    The warranty period provided by P as well as the conditions and exceptions to the limited warranty shall be prescribed in a separate limited warranty document mutually agreed and signed by the Parties and such limited warranty document shall take precedence over this Document with regard to the subject matter. In the event that no such limited warranty document is entered between the Parties, the warranty period for the [ Products/ System] shall be the Shelf Life plus the Calendar life, defined as follows ( 1 ) Shelf Life is for the period of 6 months from the time the battery is shipped from h a i l e i factory or, fro m the time the battery is shipped from P factory until the installation and commissioning, whichever occurs first, (2 ) Calendar Life occurs when the battery reaches 80% of the rated capacity after 10 years or battery reaches 3000 cycles, whichever occurs first.
