113AH 3.2V LiFePO4 Battery LPF42173205 For EV And ESS Prismatic Cell

Product Categories

Guang Zhou Sunland New Energy Technology Co., Ltd.

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Ask Lasest Price
Brand Name :	TAC OEM ODM
Model Number :	LPF42173205 3.2V 113AH
Certification :	MSDS REACH ROHS
Price :	10-100 each pcs
Supply Ability :	50000 pack for one week
Payment Terms :	L/C, T/T
Delivery Time :	7 days for single cell 15-20 days for battery pack

Add to Cart

LiFePO4 Battery Prismatic Cell LPF42173205 3.2V 113AH For EV and ESS

Feature for LiFePO4 Battery Prismatic Cell LPF42173205 3.2V 113AH For EV and ESS

Super Long Working life: Over 2000cycles, 4 times more than that of lead-acid battery.
For high Temperature: Good working performance under 70℃.
Super safe:under 150℃ for 30 minutes,no fire, no explosion.
Light Weight Deep Cycle Lithium Battery Pack

NO.	Item	Specification	Remark
1	Nominal Capacity	113Ah	0.2C, CC(constant current)discharge to 2.0V cut off, at 23±3℃
2	Nominal Voltage	3.2V
3	Standard Charging Current	0.2C	0～45℃0.2CCC(constant current)charged to 3.6V,then CV(constant voltage 3.6V)charge till charge current ≤0.02C
4	Max. Charging Current	1.0C
5	Charge Ending Voltage	3.6V
6	Standard Discharging Current	0.2C	0.2CCC(con constant current)discharged to 2.0V
7	Max. Continual Discharging Current	2.0C
8	Discharge Ending Voltage	2.0V
9	Standard Charging Time	5～6h
10	Rapid Charging Time	1～2h
11	Production Impedance	≤80mΩ	AC Impedance 1KHz
12	Battery Weight	≤ 235g	No include box
13	Volumetric Energy	～264Wh/l
14	Gravimetric Energy	～136Wh/Kg

8-10 pcs put in plastic tray, , 10 trays shrink together to avoid short circle and vibration

Solar energy storage,Home wall ,home storage ,E-vehicle products.

solar street light,wind energy storage ,UPS

telecommunication power supply, photo voltaic power station

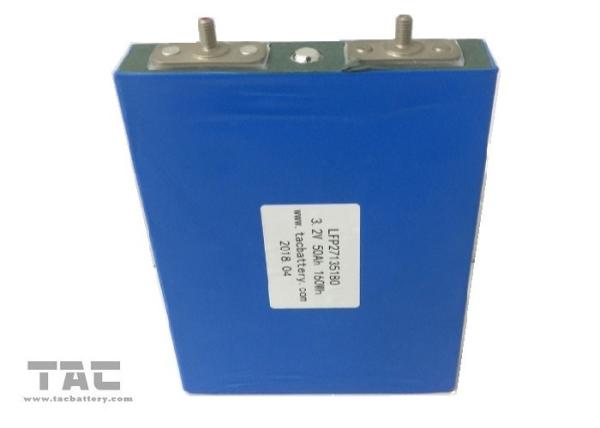

Picture for Singer Cell

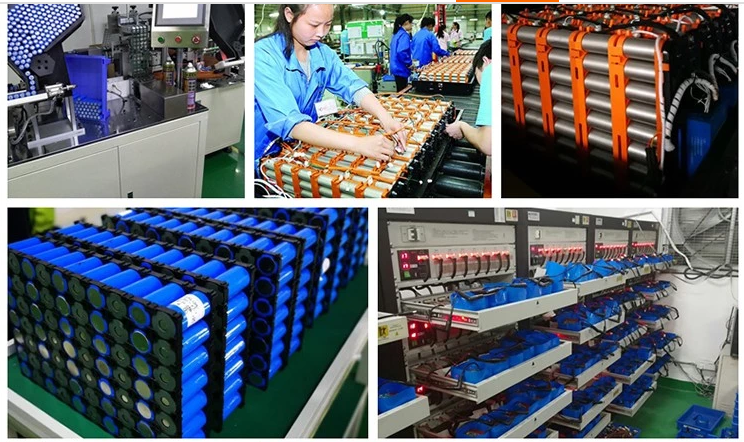

The single cell were assembled to various battery pack

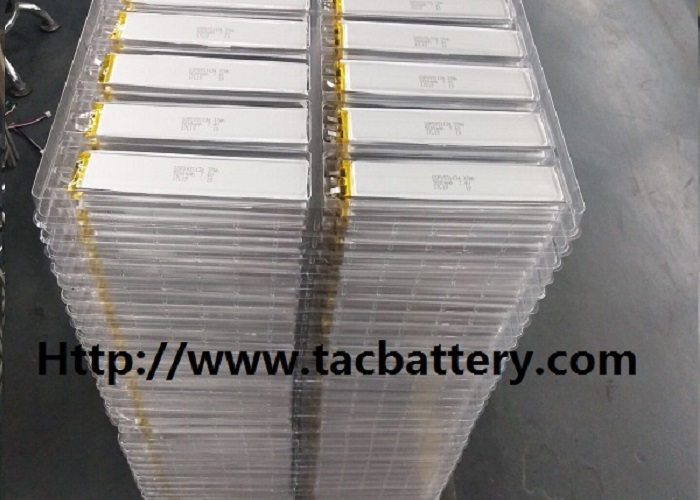

If you need seeking for pouch 3.2V liFePO4 cell , pls check below
