Metal Housing 60V 30AH Lifepo4 Battery Pack For Motor Tricycle Deep Circle

Product Categories

Guang Zhou Sunland New Energy Technology Co., Ltd.

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Add to Cart

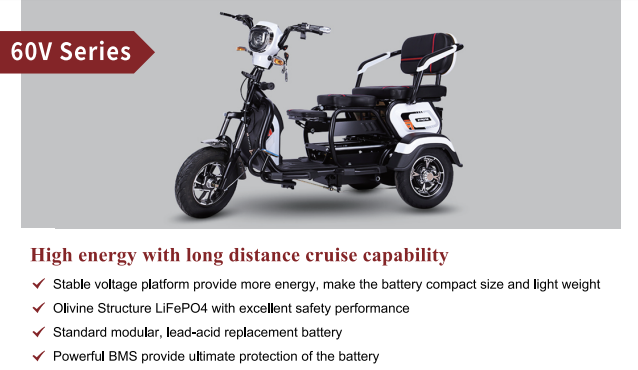

high energy with long distance cruise capability
stable voltage platform provide more energy,make the battery compact size and light weight
olivine structure Lifepo4 with excellent safety performance
standard modular, lead-acid replacement battery
powerful BMS provide ultimate protection of the battery

Item	General Parameter		Remark
Combination method	20S5P
Rated Capacity )	Typical	30Ah	Standard discharge after Standard charge(package)
	Minimum	30Ah
Nominal Voltage	60V-66V		Mean Operation Voltage
Discharge Cut-off Voltage	44.8V		Discharge Cut-off Voltage
Charging Voltage	69.35V
Internal Impedance	≤80mΩ		Internal resistance measured at AC 1KHZ after 50% charge The measure must uses the new batteries that within one week after shipment and cycles less than 5 times
Standard charge	Constant Current 0.2C Constant Voltage57.6V 0.02CA cut-off		Charge time : Approx6 h
Standard discharge	Constant current:0.2C end voltage 44.8V
Maximum Continuous Charge Current	15A
Maximum Continuous Discharge Current	35A
Operation TemperatureRange	Charge: 0~45℃		60±25%R.H. Bare Cell
	Discharge: -20~60℃
StorageTemperatureRange	Less than 12 months : -20~25℃		60±25%R.H. at the shipment state
	less than 3 months: -20~40℃
	Less than 7 day : -20~60℃
Dimensions	OEM ODM		APPROX
Weight	11.0KG		APPROX
(Delivery SOC)	50%-60%
(Package)	(Paper carton + Wooden Pallet)

the battery pack design for motor tricycle

The battery pack will be protected by specially pallet avoid damange during the shipping

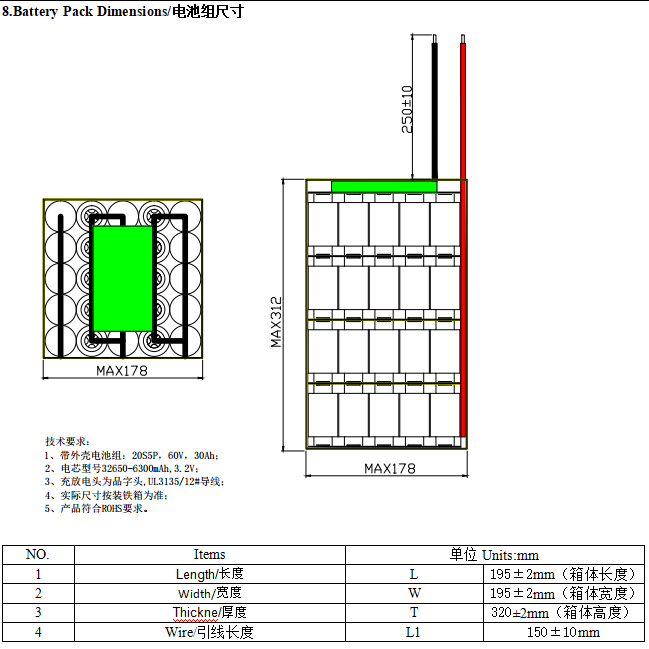

Drawing for 60V 20AH 30AH lifepo4 Battery Pack for Motor Tricycle Deep Circle
