Black 12V Lifepo4 Battery Pack 7.5AH Home Solar Light System Or EV

Ask Lasest Price
Brand Name :	TAC OEM ODM
Model Number :	IFM-12.8V-7.5Ah-E2 with housing
Certification :	MSDS REACH ROHS
Price :	USD 30-50
Payment Terms :	L/C, T/T
Supply Ability :	50000SET per month
Delivery Time :	7-25 days after order confirm

Add to Cart

Product Details
Company Profile

Black 12V Lifepo4 Battery Pack 7.5AH Home Solar Light System Or EV

12V Lifepo4 Battery Pack 7.5AH Home Solar Light System Or EV

Feature for 12V Lifepo4 Battery Pack 7.5AH Home Solar Light System Or EV

1. The replacement of Lead-Acid battery,environmental protection pass Reach

2. deep circle Longer life, more than 2000 cycles

3. Low self-discharge rate, less than 3% monthly,

4. Lighter weight, with the best power-to-weight ratio
5. Single cell IFR18650 1500MAH 3.2v assembled with 4s5p
6. High charging & storage efficiency

7. abs plastic housing

Specification for 12V Lifepo4 Battery Pack 7.5AH Home Solar Light System Or EV

No.	Item	General Parameter	Remark
1	Rated Capacity	7.5Ah	Standard discharge(0.2 C5)after standard charge(0.2 C5)
2	Minimal Rated Capacity	7.4Ah	Standard discharge(0.2 C5)after standard charge(0.2 C5)
3	Nominal Voltage	12.8V
4	Cycle Life	Higher than 60% of the Initial Capacity of the Cells	◆Charge: CC@0.2C to 14.6V, then CV till current to 0.05C ◆Rest: 30min. ◆Discharge: 0.2C to 10.0V ◆Temperature:20±5℃ ◆Carry out 2000cycles
5	Discharge cut-off voltage	10.0V	10.0V( recommended)
6	Charging cut-off voltage	14.8V	14.6V (recommended)
7	Cell and assembly method
7	Cell and assembly method	IFR18650EC 1.5AH	4S5P
8	Housing material	ABS+PC housing

Charge and Discharge Performance

9	Standard charge	0.2C constant current(CC) charge to 14.6V,then constant voltage (CC)14.6V charge till charge current decline to ≤0.05C	Charge time : Approx 7h
10	Standard discharge	Constant current 0.2C Cut-off voltage 10.0V
11	Maximum Charge Current	1C	(0.2C Recommended)
12	Continuous Discharge Current	1C
12	Peak Discharge Current	5C
13	Operation Temperature Range	Charge: 0~45℃	60±25%R.H.
13	Operation Temperature Range	Discharge: -10~60℃	60±25%R.H.
14	Storage Temperature Range	Less than 1 year : 0~25℃	60±25%R.H. at the shipment state
14	Storage Temperature Range	Less than 3 months:-5~35℃	60±25%R.H. at the shipment state
15	Weight	Approx:1.6Kg
16	Max.Dimension	Height:151mm	15165116mm can adjust with customer's require
		Width: 65mm
		Length: 116mm

Application for 12V Lifepo4 Battery Pack 7.5AH Home Solar Light System Or EV

Lithium Battery Replace Lead Acid Battery project will hot sale continue in 2021, More and more overseas buyer hope to purchase 12V LiFePO4 standard module , and assembled it for 24v 36v 48v bigger capacity storage power system. TAC upgrade 12 Lithium Battery performance to meet the require.

Packing Manner

One battery pack was protected by cystosepiment and then put strong paper box

Similar Production Picture

Black 12V Lifepo4 Battery Pack 7.5AH Home Solar Light System Or EV

Similar Production

HK TAC get below certification to support customer to win global market:

North America Certificate: UL
Europe Certificate: CE/ROHS/REACH/
Asia & Australia Certificate: PSE/KC/CQC/BIS
Global Certificate: CB/IEC62133/UN38.3/MSDS

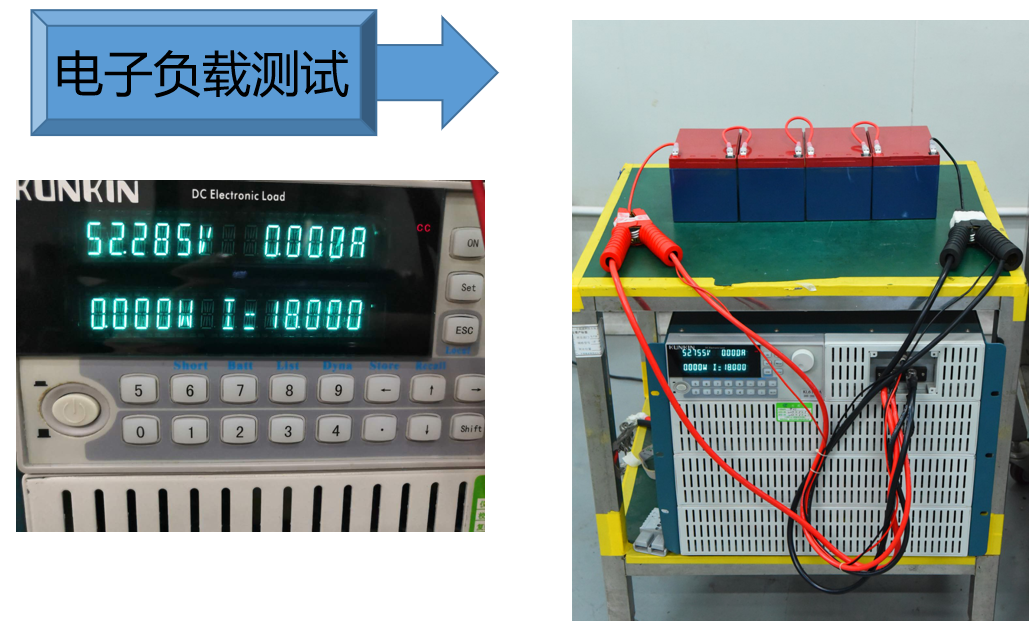

Production Line
