Light Weight 3.2 Volt LiFePO4 Battery 300MAH LFP303505E For Miner Lamp

    Buy cheap Light Weight 3.2 Volt LiFePO4 Battery 300MAH LFP303505E For Miner Lamp from wholesalers

    Buy cheap Light Weight 3.2 Volt LiFePO4 Battery 300MAH LFP303505E For Miner Lamp from wholesalers
    • Buy cheap Light Weight 3.2 Volt LiFePO4 Battery 300MAH LFP303505E For Miner Lamp from wholesalers
    • Buy cheap Light Weight 3.2 Volt LiFePO4 Battery 300MAH LFP303505E For Miner Lamp from wholesalers

    Light Weight 3.2 Volt LiFePO4 Battery 300MAH LFP303505E For Miner Lamp

    Ask Lasest Price
    Brand Name : TAC OEM ODM
    Model Number : LFP303505E 300MAH 3.2V
    Certification : MSDS REACH ROHS
    Price : usd 2-3
    Payment Terms : L/C
    Supply Ability : 50000 pack for one week
    Delivery Time : 7 days for single cell 15-20 days for battery pack
    • Product Details
    • Company Profile

    Light Weight 3.2 Volt LiFePO4 Battery 300MAH LFP303505E For Miner Lamp

    3.2V LiFePO4 Battery 300MAH LFP303505E Prismatic Cell For Miner Lamp


    Key Data for 3.2V LiFePO4 Battery 300MAH LFP303505E Prismatic Cell For Solar Production


    NO.ItemsParameterRemarks
    1Rated Capacity300mAhDischarge:0.2C
    Cut-off voltage:3.0V
    Minimum Capacity280mAh
    2Energy0.96Wh
    3Nominal Voltage3.2V
    4Open Voltage≥3.2V
    5Load Voltage≥3.2V10Ω
    6Cycle Life≥2000 times
    7Internal Impedance≤27mΩAC 1KHz after 50% charge
    8Charge voltage4.1V
    9Standard charge current150mA
    10Max charge current300mA
    11Standard discharge current600mA
    12Max Discharge current0.2A
    13Discharge cut-off voltage2.0V
    14Operating Temperature0~+55℃Charge
    -20~+60℃Discharge
    15Storage temperature for a long time-20~25℃
    16Weight42±1g
    17Dimensions05*30*35mmsingle cell

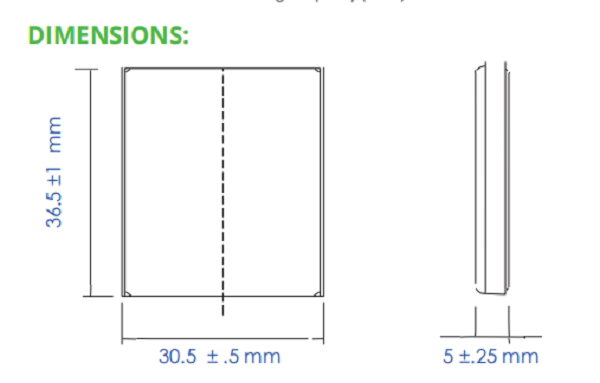

    Engineer Drawing



    Discharge Rate Test Data

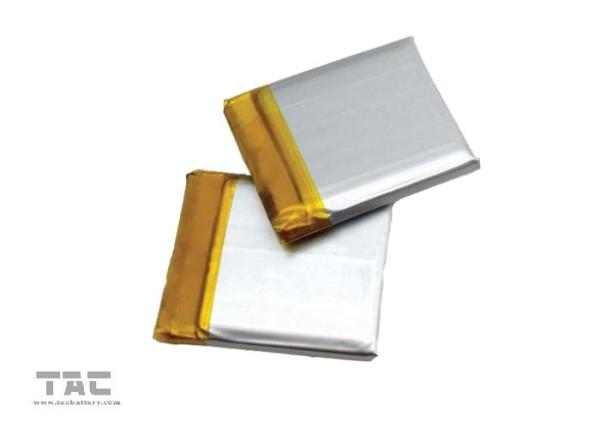

    Battery Picture

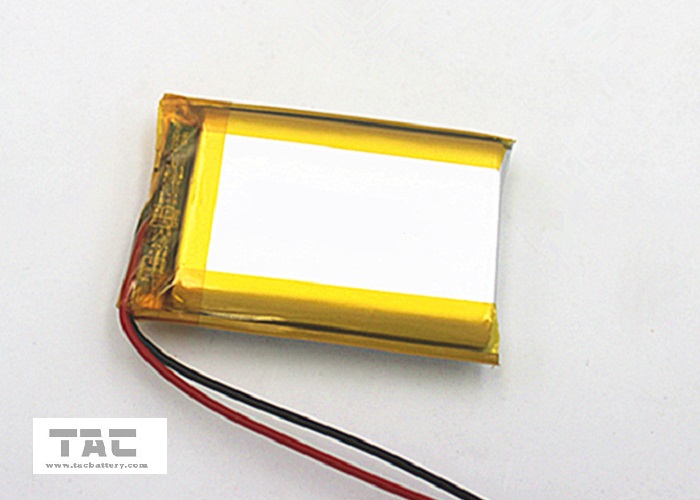

    Battery with PCB


    Battery with connector


    Application

    This is small size design for miner lamp street lamp lawn lamp and other solar production


    Hk tac also smade more other 3.2v Lifepo4 battery including of cylindrical cell and pack
