90*70*101mm 6Ah 12V LiFePO4 Battery Pack With BMS System

    Buy cheap 90*70*101mm 6Ah 12V LiFePO4 Battery Pack With BMS System from wholesalers

    Buy cheap 90*70*101mm 6Ah 12V LiFePO4 Battery Pack With BMS System from wholesalers
    • Buy cheap 90*70*101mm 6Ah 12V LiFePO4 Battery Pack With BMS System from wholesalers
    • Buy cheap 90*70*101mm 6Ah 12V LiFePO4 Battery Pack With BMS System from wholesalers
    • Buy cheap 90*70*101mm 6Ah 12V LiFePO4 Battery Pack With BMS System from wholesalers

    90*70*101mm 6Ah 12V LiFePO4 Battery Pack With BMS System

    Ask Lasest Price
    Brand Name : TAC OEM ODM
    Model Number : 9070101 IFM32700
    Certification : MSDS REACH ROHS
    Price : usd 12-15
    Payment Terms : L/C, T/T
    Supply Ability : 5000 per week
    Delivery Time : 7-25 days after order confirm
    • Product Details
    • Company Profile

    90*70*101mm 6Ah 12V LiFePO4 Battery Pack With BMS System

    LiFePO4 Battery 12V 6Ah With BMS System Replacement Sealed Lead Acid Battery


    Advantages for LiFePO4 Battery 12V 6Ah With BMS System Replacement Sealed Lead Acid Battery

    1. High stability: Stable cell structure with IFR32700 , precise assembling design for whole system , powerful BMS
    2. High safety: Test the battery with UN38,3 Standard for whole pack, protection and BMS safety protection. When overcharge, over discharge, short circuit, fall, squeezing, heating, needle thorn,,and other safety testing, no explosion, no combustion.
    3. Long life: more than 2000 charge and discharge cycles, about 3-5 years life-time.
    4. Green: Lifepo4 battery does not contain any heavy metals and other harmful substances passed Reach
    5. Flexible configuration: standard products or support OEM /ODM
    6. Perfect after-service: profession , timely , Passionate, and considerate service .
    7. High Cost-Effective: Base on the lifepo4 high cost performance Center Power also offer the most competitive price.

    Specification for LiFePO4 Battery 12V 6Ah With BMS System Replacement Sealed Lead Acid Battery

    No.ItemsSpecifications

    Remark


    1

    Capacity for assembled cell

    discharging by 0.2C



    ≥5.9Ah

    Standard discharging method



    2


    Battery Voltage



    12.4-13.6V


    Delivery voltage, Within 10 days from Factory



    3


    Standard charge condition


    Charge with 0.2C constant current and 14.6Vconstant voltage, charge to 14.6V continue charging till current decline to ≤0.01C


    Charge voltage: 14.6V±0.02V

    Charge current:0.2C



    4

    Maximum charge current




    3A

    For continuous charging mod



    5

    Maximum discharge current



    6A

    For continuous discharge mod



    6

    Standard discharging method



    0.2C constant current discharge to 8V,


    7

    Internal Impedance



    Assemblage Impedance

    ≤180mΩ

    Measure two sides of the drawing line after assembling.

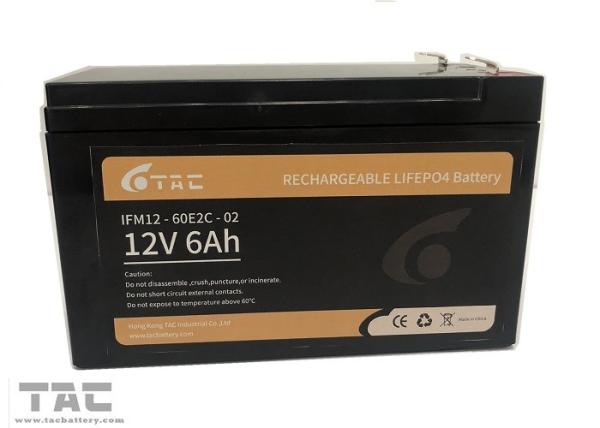

    Battery Pack Picture



    Pakage


    More model


    Storage temperature at a long time

    Do not storage exceed half year.Must charge at least once when storage half year, and must charge the battery(with protect circuit) when storage for three months.


    Cycle Life

    Charging and discharging battery as below conditions:

    0.2C standard charge to 3.65V end-off

    0.2C standard discharge to 2.0 V cut-off

    Continuous charge and discharge for 2000 cycles,the capacity will be measured after the 2000th cycle


    Period of Warranty

    The period of warranty is One year from the date of shipment.HaiLei guarantees to give a replacement in case of cells with

    defects proven due to manufacturing process instead of the customer abuse and misuse.

    Certification
