Cylindrical Lithium Ion LiFePO4 26650 Battery Cell 3800mah

Ask Lasest Price
Brand Name :	TAC OEM ODM
Model Number :	IFR26650 3800MAH 3.7V
Certification :	MSDS REACH ROHS
Price :	usd 2.5
Payment Terms :	L/C, T/T
Supply Ability :	50000 pack for one week
Delivery Time :	7 days for single cell 15-20 days for battery pack

Add to Cart

Product Details
Company Profile

Cylindrical Lithium Ion LiFePO4 26650 Battery Cell 3800mah

Cylindrical Lithium ion Battery Lifepo4 26650 battery cell 3800mah For Flash Light

Specification for Cylindrical Lithium ion Battery Lifepo4 26650 battery cell 3800mah For Flash Light

Model	IFR26650-3800
Nominal Voltage	3.2V
Nominal Capacity	3800mAh
Dimensions	(DH mm) 26.565.3
Fast Discharge current	3.8A
Max continuous discharge current	11.4A
Pulse discharge current	20A, 5S
Charge Cut-off voltage	3.65V
Discharge Cut-off voltage	2.0V
Weight	87.5g
Cycle life(DOD at 80%)	2000 times
Energy	12.16Wh
Charge method	CC-CV
Internal Impedance	≤25mΩ
Charge Temperature	0℃~55℃
Discharge Temperature	-20℃~55℃

Applications:

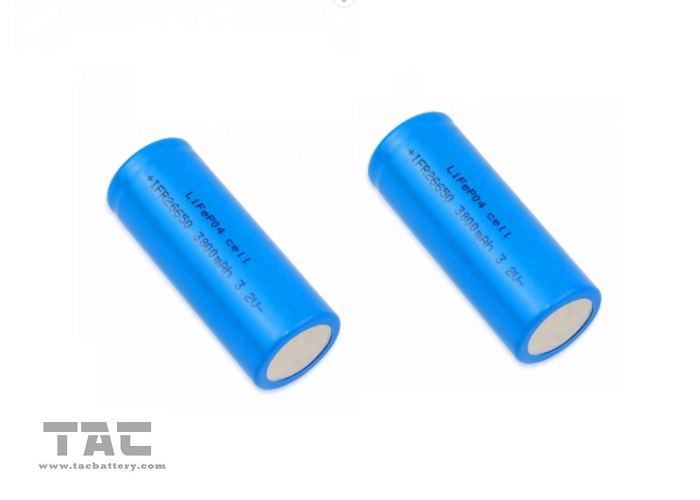

Battery Photos

If you need 12V 24V 36V 48V LiFePO4 battery pack assebmled by LFR26650 and other cell , we can support too

Our Factory Show

More Model for Cylindrical Lithium Ion Lifepo4 Battery

model	capacity(mAh)	voltage(V)
32650	6500	3.2
32650	6000	3.2
32650	5000	3.2
26650	3600	3.2
26650	3400	3.2
26650	3200	3.2
26650	3000	3.2
26650	2600	3.2
26500	2400	3.2
22650	2100	3.2
18650	1500	3.2
18500	1000	3.2
14500	600	3.2
14500	500	3.2
14500	400	3.2
14430	400	3.2

Handling of battery

Prohibition short circuit

Never short circuit battery. It generates very high current which causes heating of the battery and may cause electrolyte leakage, gassing or explosion that is very dangerous.

The poles may be easily short-circuited by putting them on conductive surface.

Such outer short circuit may lead to heat generation and damage of the battery.

An appropriate circuitry with PCM shall be employed to protect accidental short circuit of the battery pack.

The period of warranty is 18 months from the date of shipment. TAC guarantees to give a replacement in case of

battery with defects proven due to manufacturing process instead of the customer abuse and misuse.

The batteries should be stored at room temperature, charged to about 30% to 50% of capacity.
We recommend that batteries be charged about once per three months to prevent over-discharge.
