Accumulator 18650 1S4P 3.7V 10.4Ah Lithium ion Battery for Fire Panel with Nickel Tab.

Feature:

1. Widely used,application for some safety system,lighting and other consumer product.

2. Can support max 20A discharge cureent.

3. Wide working termperature.

Accumulator 18650 1S4P 3.7V 10.4Ah Lithium ion Battery for Fire Panel with Nickel Tab.

Parameter:

No.	Items	Specifications		Remark
1	Capacity for assembled cell discharging by 0.2C	≥ 10080mAh		Standard discharging method
2	Battery Voltage	3.70-3.90V		Delivery voltage, Within 10 days from Factory
3	Standard charge condition	Charge with 0.2C constant current and 4.2V constant voltage, charge to 4.2V,continue charging till current decline to ≤0.01C		Charge voltage:4.2V±0.03V Charge current:0.2C
4	Standard discharging method	0.2C constant current discharge to 3.0V,
5	Operation Temperature and relative humidity Range	0.2C Charge	0~ 15℃ 60±25%R.H.	Charge at a very low temperature such as blew 0℃,will be get a lower capacityand reduce cycle life of the battery
		0.5C Charge	15~45℃ 60±25%R.H.
		0.2C Discharge	-20~0℃ 60±25%R.H.
		1C Discharge	0~60℃ 60±25%R.H.
6	Internal Impedance	Assemblage Impedance≤ 70 mΩ		Measure two sides of the drawing line after assembling.

Accumulator 18650 1S4P 3.7V 10.4Ah Lithium ion Battery for Fire Panel with Nickel Tab.

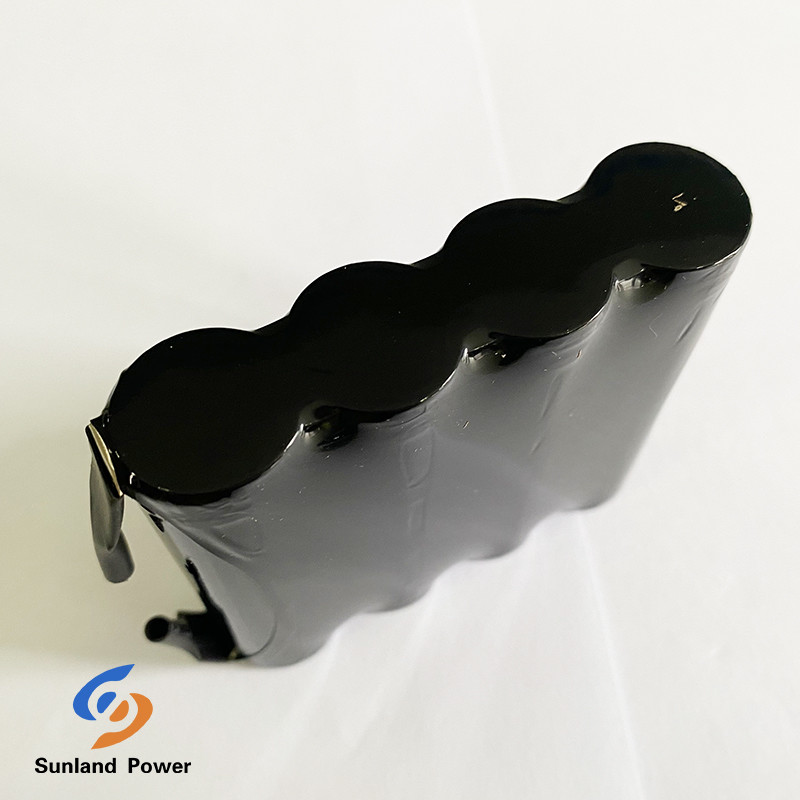

Picture:

Accumulator 18650 1S4P 3.7V 10.4Ah Lithium ion Battery for Fire Panel with Nickel Tab.

1. Never disassemble the cells

The disassembling may generate internal short circuit in the cell, which may cause gassing, firing, explosion, or other problems.

2.Electrolyte is harmful

LIR battery should not have liquid from electrolyte flowing, but in case the electrolyte come into contact with the skin, or

eyes, physicians shall flush the electrolyte immediately with fresh water and medical advice is to be sought.
