Rechargeable Lithium Battery IFR10440 AAA 3.2V LiFePO4 200mAh Cell Flat Cap

Product Categories

Guang Zhou Sunland New Energy Technology Co., Ltd.

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Name: Rechargeable Lithium Battery IFR10440 AAA 32V LiFePO4 200mAh Cell Flat Cap
Brand: Sunland
Price: 0.72 USD

Ask Lasest Price
Brand Name :	Sunland
Model Number :	IFR10440
Certification :	MSDS REACH ROHS
Price :	USD0.72
Payment Terms :	TT,PATPAL
Supply Ability :	500000 pack for one week
Delivery Time :	7 days for single cell 15-20 days for battery pack

Add to Cart

The Feature of AAA/IFR10440 200mAh:

1. Model Name: IFR10440/AAA 200mAh Lithium iron phosphate battery

2.The long cycle life,is about 2000 times

3. There are IFR14500/AA, IFR17335/123A,IFR18650,IFR26650,IFR32700,IFR32140,IFR40135 are available.

Parameter:

No.	Items	Specifications		Remark
1	Capacity	Typical	200mAh	0.2C CC-CV to 3.65V, 0.01C cut off 0.2C DC to 2.0V ※1C=200mA
1	Capacity	Minimal	200mAh
2	Nominal voltage	3.2V		Mean operation voltage
3	Delivery voltage	3.20~3.35V 30%-60%SOC ,25±5℃		Within 10 days from Factory
4	Standard charging method	0.2C CC-CV to 3.65V, 0.01C cut off
5	Charge limited voltage	3.70V		By standard charge method
6	Charge current	0.2C	40mA	Standard charge, charge time about 6.5h(Ref)
6	Charge current	0.5C	100mA	Rapid charge, charge time about:3h(Ref)
7	Standard discharging method	0.2C DC to 2.0V
8	Discharge end-off voltage	2.0V		By standard discharge method
9	AC internal impedance	≤120mΩ		Internal resistance measured atAC 1KHZ at 50%SOC
10	Weight	8.0±1.0g

No.	Items	Specifications			Remark
11	Maximum charge current	0.5C	100mA		For continuous charging mode
12	Maximum discharge current	1C	200mA		For continuous discharging mode
13	Precharge current after overdischarge	≤0.1C	Overdischarge voltage＜2.0V		Precharge current after overdischarge
14	Environment temperature & Charge-discharge limits	Charge	0~15℃	≤0.2C	Low temperature charging and discharging efficiency will decrease,the temperature is too high or too low use will affect the battery life, it is prohibited to charge below 0℃.
			15~45℃	≤0.5C
		Discharge	-20~0℃	≤0.2C
			0~60℃	≤1C
15	Battery surface temperature &Charge-discharge limits	Charge	≤60℃
		Discharge	≤70℃
16	Storage temperature and time (Humidity 60±25% RH)	-20~25℃	≤12 个月		Suitable for long time storage
		-20~45℃	≤3 个月		Battery’s performance will be influenced after high temperature storage, please communicate with Sunland engineer to make sure all the details.
		-20~60℃	≤1个月

Pictures:

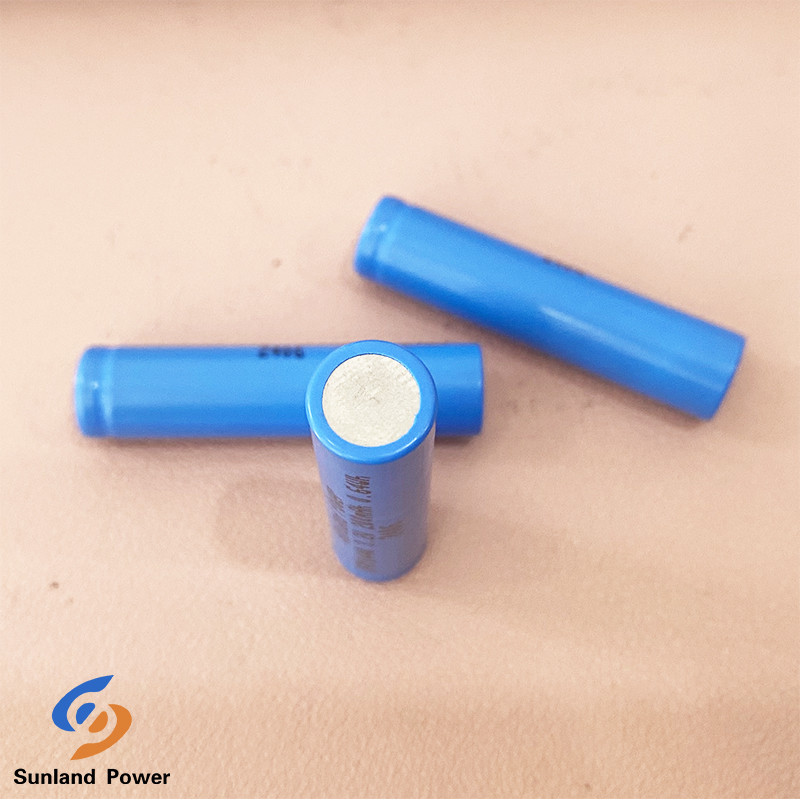

Rechargeable Lithium Battery IFR10440 AAA 3.2V LiFePO4 200mAh Cell Flat Cap
